红色 绿色 蓝色

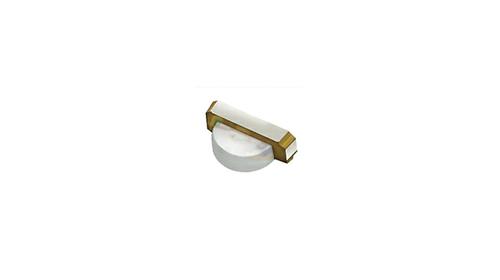

Red, Green, Blue RGB 624nm Red, 525nm Green, 470nm Blue Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 2-SMD, No Lead
立创商城:
RGB三色 共阳极 525nm 624nm 470nm 侧贴
得捷:
LED RGB CLEAR SMD R/A
贸泽:
Standard LEDs - SMD RGB Water Clear
艾睿:
LED Tri-Color Blue/Green/Red 468nm/518nm/632nm 4-Pin Chip LED T/R
安富利:
LED Tri-Color Blue/Green/Red 468nm/518nm/632nm 4-Pin Chip LED T/R
TME:
LED; SMD; 1206; RGB; 3x1.5x1mm; 100°; 25mA; Lens: transparent
儒卓力:
**FULLCOLOR CHIP LED RIGHT ANGLE **
Win Source:
LED RGB CLEAR 2SMD R/A
正向电压 1.9 V
波长 624nm Red, 525nm Green, 470nm Blue
视角 100°
峰值波长 632nm Red, 518nm Green, 468nm Blue
耗散功率 95/95/60 mW
测试电流 20 mA
正向电流 20 mA
正向电流Max 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 SMD-2
高度 1.00 mm
封装 SMD-2
颜色 Red, Green, Blue RGB
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
