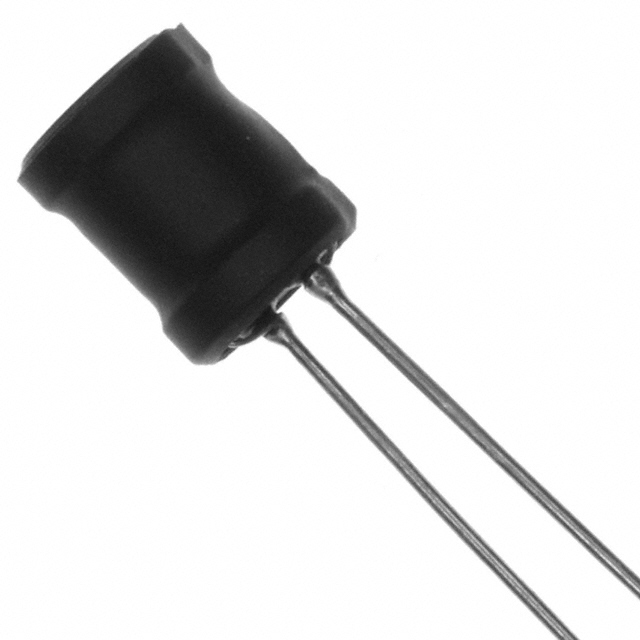

MURATA POWER SOLUTIONS 13R224C 电感, 220uH, 10% 0.7A 通孔安装 径向引线
This general purpose leaded inductor from Murata is convenient and easily removable. This part has a pitch of 5 mm. This leaded inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has an inductance of 220u H. Its test frequency is 1K Hz. This device is made with wirewound technology. This product is 13.5 mm tall with a diameter of 9.5 mm. This leaded inductor has a maximum DC current of 700m A with a maximum resistance of 470m Ohm. It has a tolerance of 10%.
额定电流 700 mA
容差 ±10 %
电感 220 µH
电感公差 ±10 %
测试频率 1 kHz
电阻DC） ≤470 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.47 Ω
安装方式 Through Hole
引脚数 2
长度 13.5 mm
高度 13.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
13R224C muRata 村田 | 当前型号 | 当前型号 |
MCSCH895-221KU Multicomp | 功能相似 | 13R224C和MCSCH895-221KU的区别 |
MCAPB105024080A-221MU Multicomp | 功能相似 | 13R224C和MCAPB105024080A-221MU的区别 |
MCSCH855U-221KU Multicomp | 功能相似 | 13R224C和MCSCH855U-221KU的区别 |
