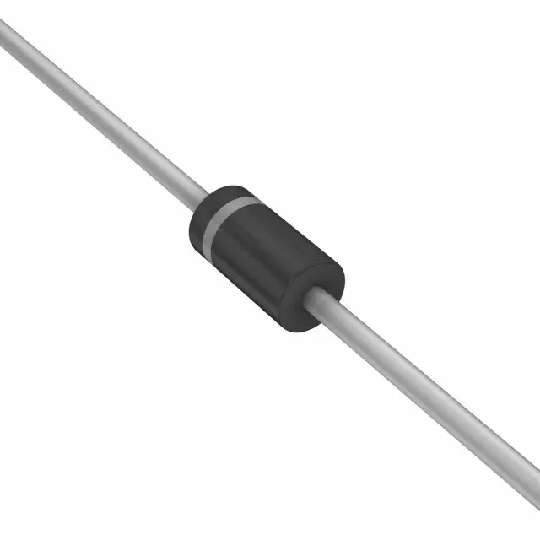

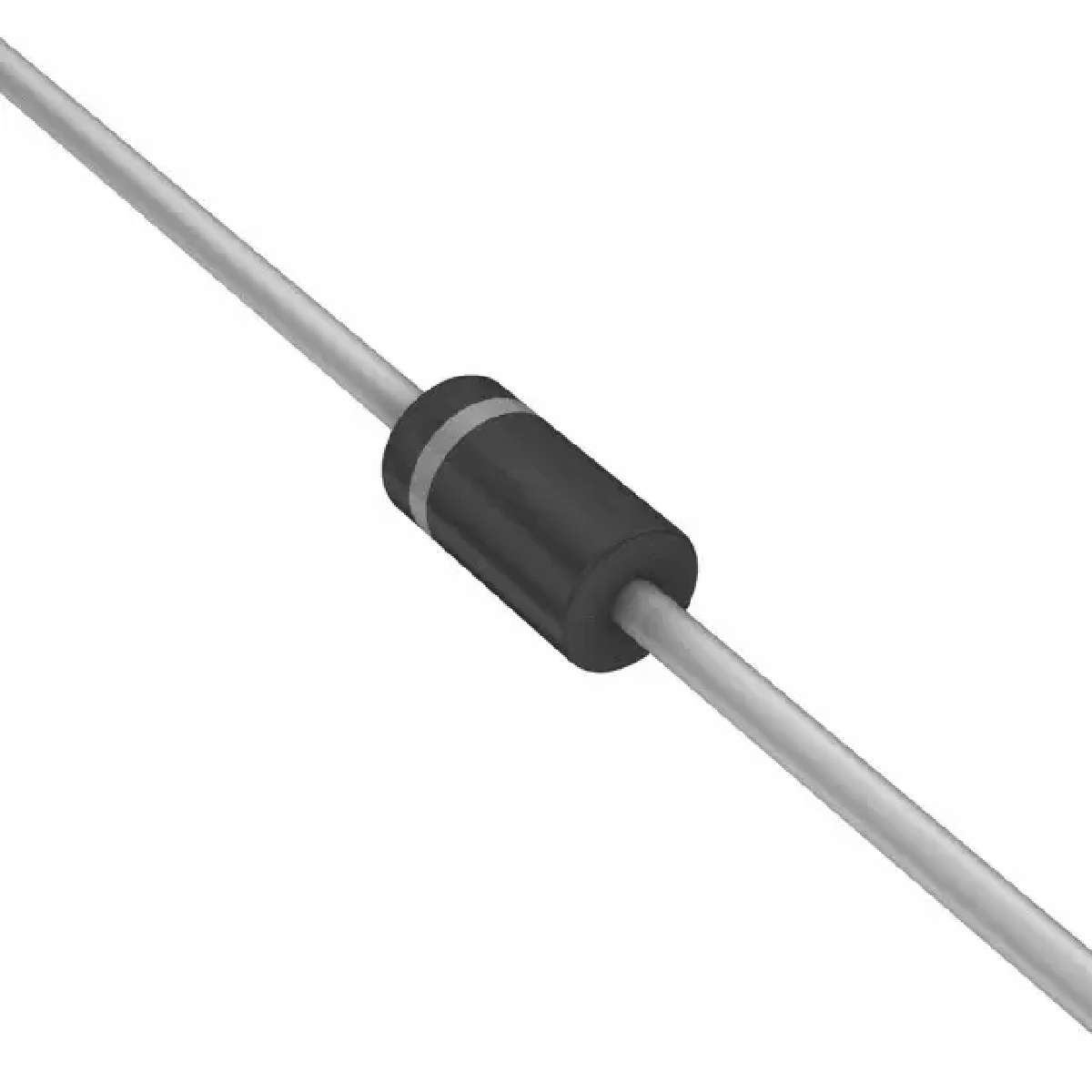

1N4936RL

轴向引线快速恢复二极管 Axial−Lead Fast−Recovery Rectifiers

Axial-lead, Fast Recovery Rectifiers are designed for special applications such as dc power supplies, inverters, converters, ultrasonic systems, choppers, low RF interference and free wheeling diodes. A complete line of fast recovery rectifiers having typical recovery time of 150 nanoseconds providing high efficiency at frequencies to 250 kHz.

Features

---

 |

.

Case: Epoxy, Molded

.

Weight: 0.4 gram approximately

.

Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

.

Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds

.

Shipped in plastic bags, 1000 per bag.

.

Available Tape and Reeled, 5000 per reel, by adding a "RL" suffix to the part number

.

Polarity: Cathode Indicated by Polarity Band

.

Marking: 1N4933, 1N4934, 1N4935, 1N4936, 1N4937
