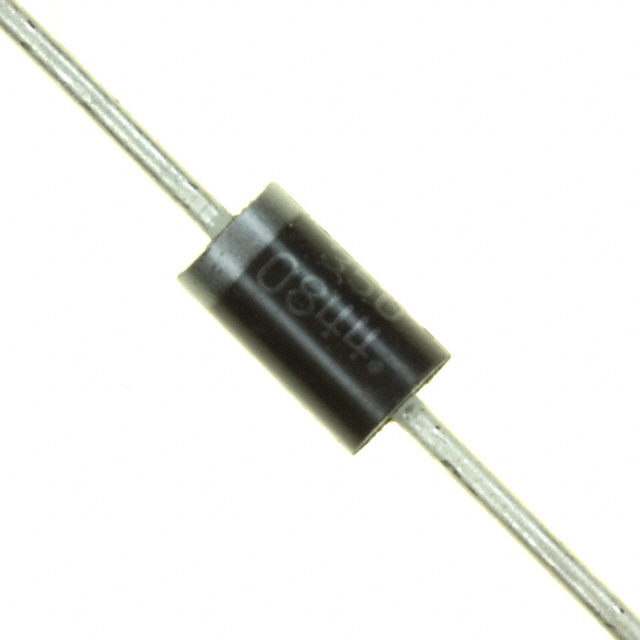

1N5400RL

轴向引线标准恢复整流器 Axial-Lead Standard Recovery Rectifiers

STANDARD RECOVERY RECTIFIERS 50−1000 VOLTS 3.0 AMPERES

Features

• High Current to Small Size

• High Surge Current Capability

• Low Forward Voltage Drop

• Void−Free Economical Plastic Package

• Available in Volume Quantities

• Plastic Meets UL 94 V−0 for Flammability

• These devices are manufactured with a Pb−Free external lead finish only

Mechanical Characteristics

• Case: Epoxy, Molded

• Weight: 1.1 gram approximately

• Finish: All External Surfaces Corrosion Resistant and Terminal

Leads are Readily Solderable

• Lead and Mounting Surface Temperature for Soldering Purposes:

220°C Max. for 10 Seconds, 1/16″ from case

• Polarity: Cathode Indicated by Polarity Band
