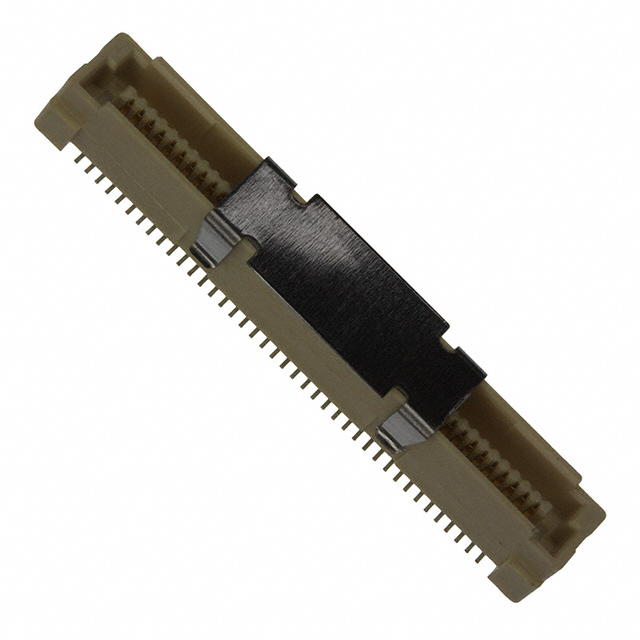

1-5177986-3

0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

80 位置 插头，中央触点带 表面贴装型 镀金

得捷:
CONN PLUG 80POS SMD GOLD

艾睿:
Reduce safety concerns with this fine pitch connector 1-5177986-3 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This PL connector&s;s 80 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 100 VAC. It has a straight body orientation. It has a plug type gender. Its pitch is 0.8 mm. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This connector has an operating temperature of -40 to 85 °C. This product is 37.8 mm long, 5.6 mm tall and 6 mm deep. It uses the solder termination method. 1-5177986-3 is housed in natural liquid crystal polymer.

安富利:
Conn Fine Pitch Connector PL 80 POS 0.8mm Solder ST SMD T/R

Chip1Stop:
Conn Fine Pitch Connector PL 80 POS 0.8mm Solder ST SMD T/R

Verical:
Conn Fine Pitch Connector PL 80 POS 0.8mm Solder ST SMD T/R

Newark:
# AMP - TE CONNECTIVITY  1-5177986-3  0.8FH,P06H.5,080,08/SN,TR,SC New

MASTER:
PLUG ASSEMBLY, FH 0.8 ON TAPING EMBOSS 0.5 BOSS LENGTH

Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

Online Components:
0.8FH,P06H.5,080,08/Sn,TR,SC

Electro Sonic:
0.8FH,P06H.5,080,08/Sn,TR,SC
