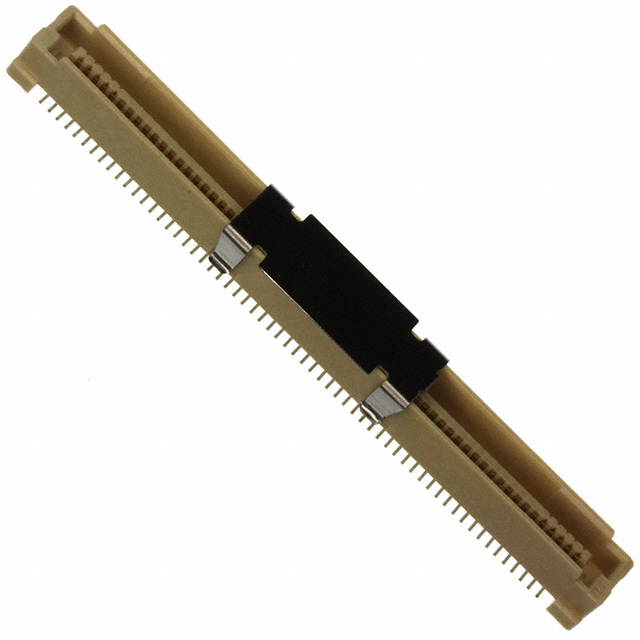

堆叠板连接器, 120 触点, 针座, 0.8 mm, 表面安装 , 2 排
120 位置 插头,中央触点带 表面贴装型 镀金
得捷:
CONN PLUG 120POS SMD GOLD
e络盟:
堆叠板连接器, 120 触点, 针座, 0.8 mm, 表面安装 , 2 排
艾睿:
This fine pitch connector 1-5177986-5 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This PL connector&s;s 120 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 100 VAC. This is a 2-row connector. Its pitch is 0.8 mm. It has a plug type gender. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the solder termination method. This connector has an operating temperature of -40 to 85 °C. 1-5177986-5 is housed in natural liquid crystal polymer. This product is 53.8 mm long, 5.6 mm tall and 6 mm deep.
安富利:
Conn Fine Pitch Connector PL 120 POS 0.8mm Solder ST SMD T/R
Chip1Stop:
Conn Fine Pitch Connector PL 120 POS 0.8mm Solder ST SMD T/R
Verical:
Conn Fine Pitch Connector PL 120 POS 0.8mm Solder ST SMD T/R
MASTER:
PLUG ASSEMBLY, FH 0.8 ON TAPING EMBOSS 0.5 BOSS LENGTH
Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors
Online Components:
0.8FH,P06H.5,120,08/Sn,TR,SC
Electro Sonic:
0.8FH,P06H.5,120,08/Sn,TR,SC
触点数 120
触点电镀 Gold, Tin over Nickel
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 120
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 100 VAC
接触电阻Max 30 mΩ
安装方式 Surface Mount
长度 53.8 mm
宽度 6 mm
高度 5.6 mm
外壳颜色 Natural
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-5177986-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
1-177986-5 泰科 | 功能相似 | 1-5177986-5和1-177986-5的区别 |
