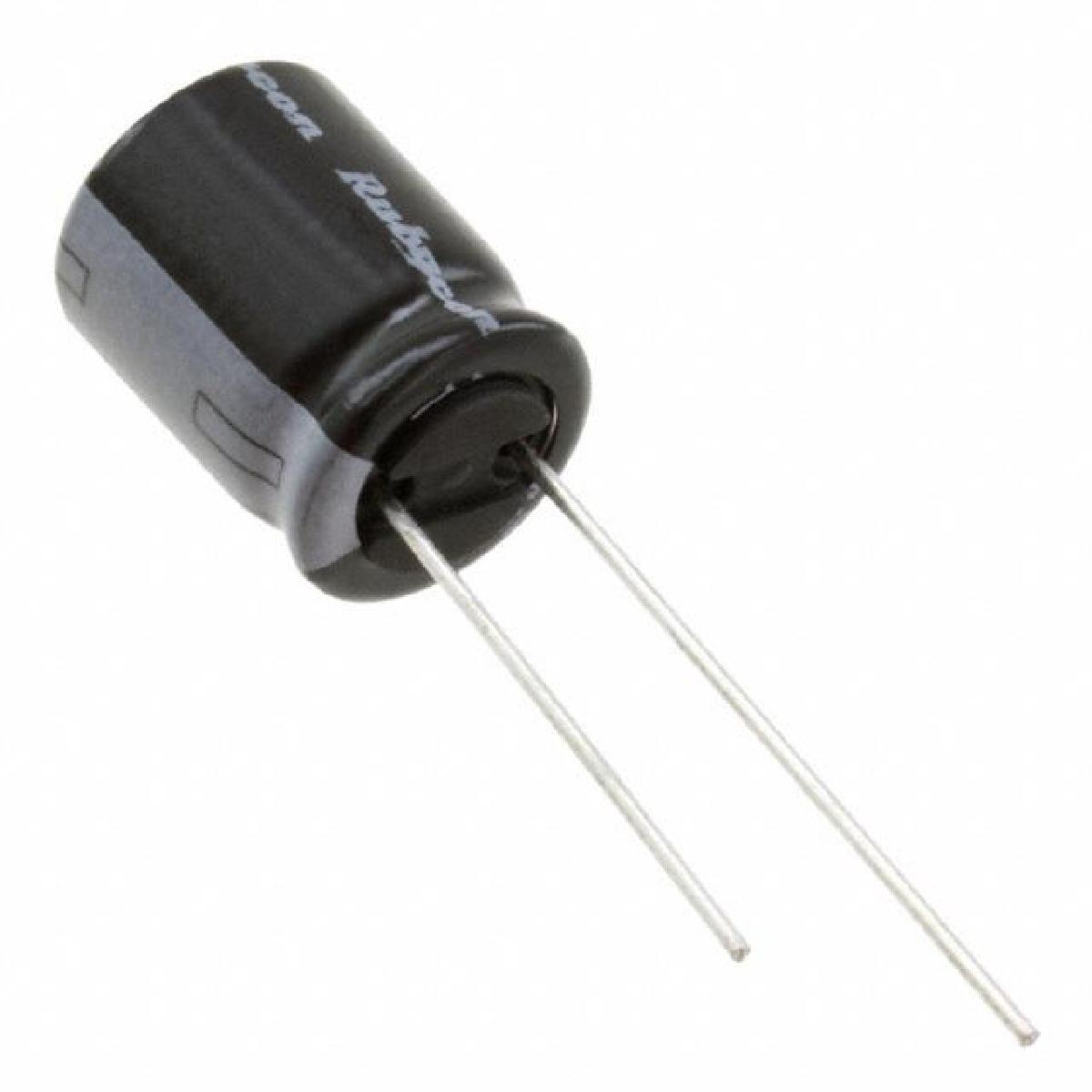

RUBYCON 100YXF47MEFC10X16 铝电解电容, 微型, YXF系列, 47 µF, ± 20%, 100 V, 10 mm, 径向引线
The is a radial leaded aluminium Electrolytic Capacitor. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- Low impedance
- .
- PET sleeve
- .
- 290mA RMS at 100kHz/+105°C Rated ripple current
- .
- Operating temperature range -40°C to +105°C
- .
- High ripple current
- .
- Endurance at 105°C is 4000hours to 10000hours depending on case size diameter
- .
- Capacitor size varies from 5 × 11mm to 18 × 35.5mm
额定电压DC 100 V
电容 47 µF
容差 ±20 %
纹波电流 203 mA
纹波电流低频 290mA @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2

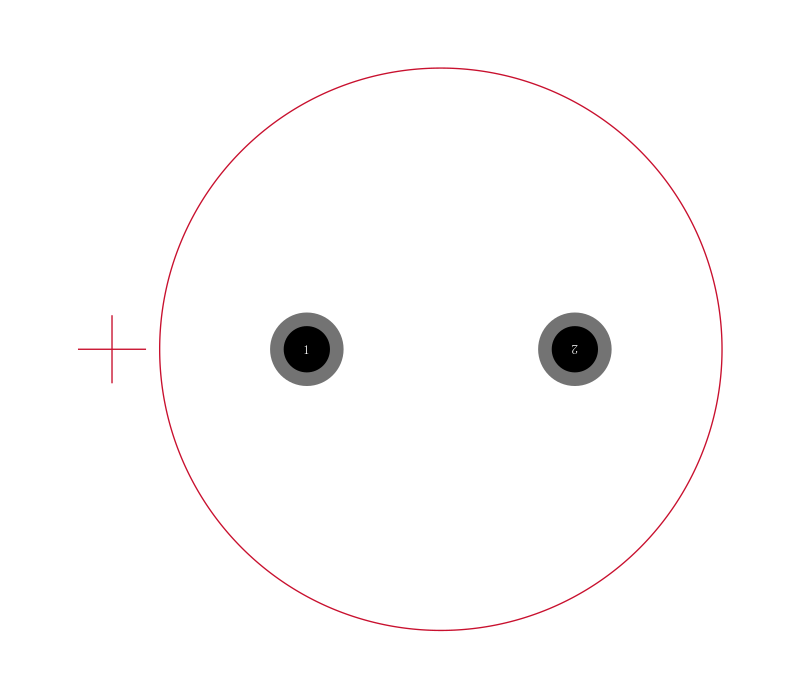

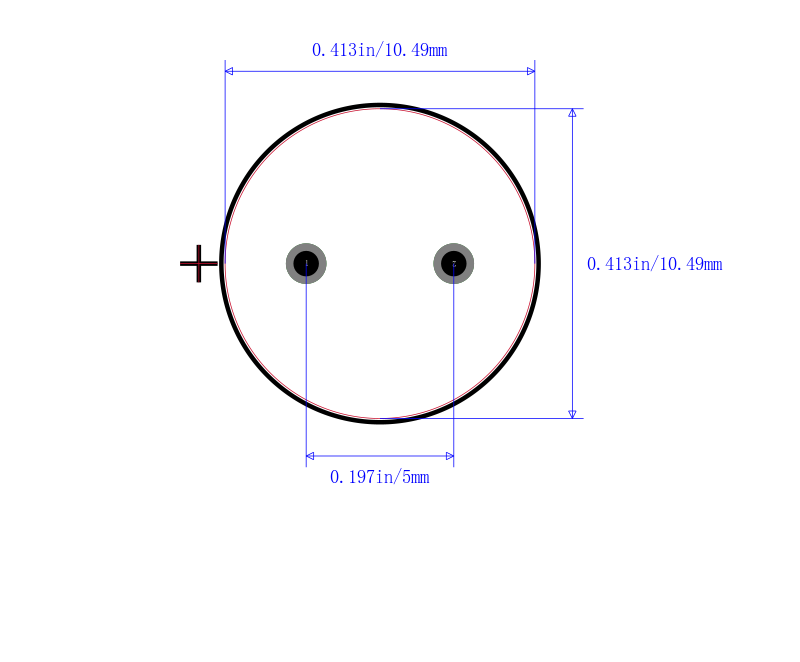

封装 Radial, CAN
引脚间距 5 mm
高度 16 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Each
最小包装 1000
寿命（小时） 7000h @105℃
制造应用 国防, 军用与航空, Multimedia, 军用与航空, Computers & Computer Peripherals, Aerospace, Defence, Military, 多媒体, 国防, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
100YXF47MEFC10X16 Rubycon | 当前型号 | 当前型号 |
UVZ2A470MPD1TD 尼吉康 | 功能相似 | 100YXF47MEFC10X16和UVZ2A470MPD1TD的区别 |
EKMG101ELL470MJC5S 贵弥功 | 功能相似 | 100YXF47MEFC10X16和EKMG101ELL470MJC5S的区别 |
UPW2A470MPD1TD 尼吉康 | 功能相似 | 100YXF47MEFC10X16和UPW2A470MPD1TD的区别 |
