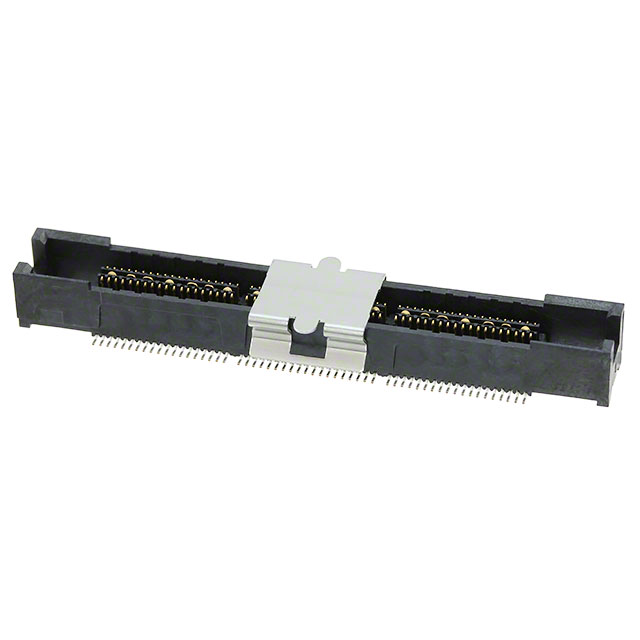

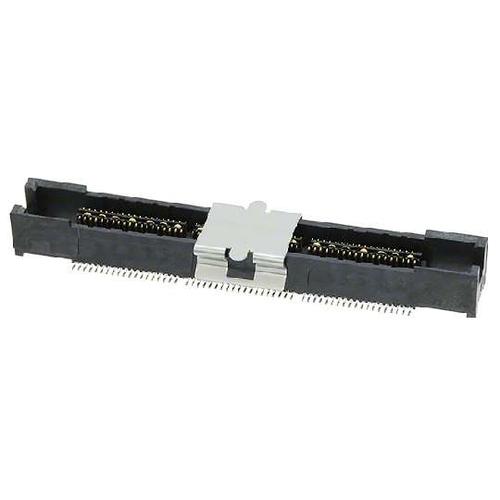

Conn High Speed Fine Pitch Connector RCP 114POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Pocket Tape
MICT,REC,114,ASY,.025,TAPE,CAP
Product Highlights
Connector
Connector Type = Receptacle
Mated Stack Height Vertical = 6.60 mm, 9.00 mm, 10.92 mm, 12.57 mm, 17.96 mm, 18.75 mm, 20.00 mm, 22.86 mm
114 Positions
Vertical Mount Angle
得捷:
CONN RCPT 114POS SMD GOLD
艾睿:
Look no further than the high speed fine pitch connector 1-5767096-0 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This RCP connector&s;s 114 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. Its pitch is 2.54/0.64 mm. It has a maximum voltage rating of 30 VAC. This is a 2-row connector. This device has a maximum current rating of 11.5/1 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 50.8 mm long, 6.1 mm tall and 6.91 mm deep. 1-5767096-0 is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
安富利:
Conn High Speed Fine Pitch Connector RCP 114 POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD Pocket Tape
Verical:
Conn High Speed Fine Pitch Connector RCP 3Power/114Signal POS 2.54mm/0.64mm Solder ST Thru-Hole/SMD T/R
MASTER:
RECEPTACLE ASSEMBLY, VERTICAL, .025[0.64]CL, GULL WING LEADS, POCKET TAPE PACKAGED, MICTOR
Powell:
.025 [0.64] Centerline Matched Impedance Connector MICTOR
Online Components:
MICT,REC,114,ASY,.025,TAPE,CAP
触点数 114
极性 Female
触点电镀 Gold, Tin
绝缘电阻 10000 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 114
额定电流Max 11.5A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
接触电阻Max 10 mΩ
安装方式 Surface Mount
长度 50.8 mm
宽度 .272 in
高度 6.1 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
