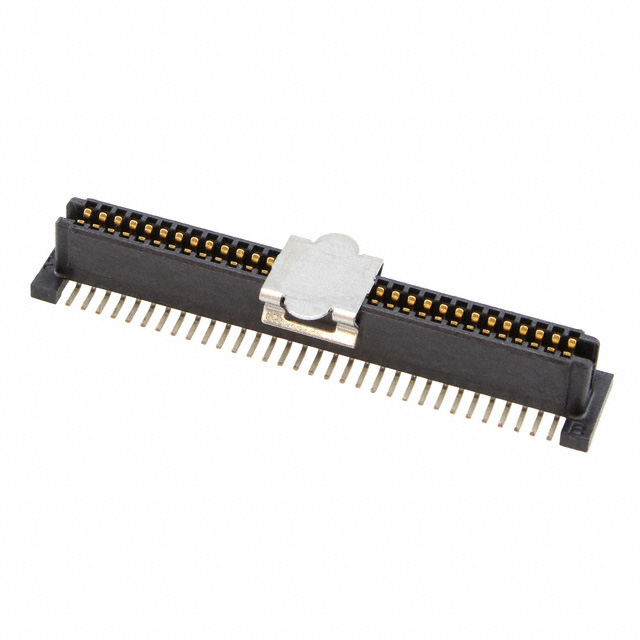

146893-1

0.4mm, 0.5mm, 0.6mm, 0.8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

1FHR,64,30A/P,S,C,S08,09,10

Product Highlights

Receptacle

1.00 mm Centerline

Number of Positions = 64

Board-to-Board Stack Height = 8.00 mm, 9.00 mm, 10.00 mm

Gold 30 Contact Mating Area Plating Material

得捷:
CONN RCPT 64POS SMD GOLD

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this ieee 1386 146893-1 header connector from TE Connectivity. This RCP connector&s;s 64 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. Its pitch is 1 mm. It has a receptacle type gender. It has a maximum voltage rating of 100 VAC. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. 146893-1 is housed in thermoplastic. This product is 35.9 mm long, 5.37 mm tall and 6.05 mm deep. This connector has an operating temperature of -40 to 85 °C. It uses the solder termination method.

安富利:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R

Verical:
Conn IEEE 1386 RCP 64 POS 1mm Solder ST SMD T/R

MASTER:
RECEPTACLE ASSY, W/ VACUUM COVER, 1.0mm FHIEEE 1386 CONNECTOR

Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors

Online Components:
1FHR,64,30A/P,S,C,S08,09,10

Electro Sonic:
1FHR,64,30A/P,S,C,S08,09,10
