1-87456-7概述

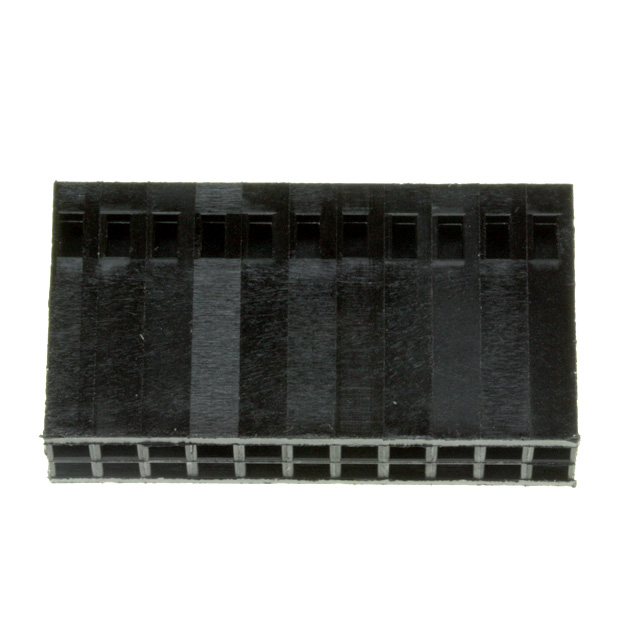

AMP - TE CONNECTIVITY 1-87456-7 Wire-To-Board Connector, 2.54mm, 22Contacts, Receptacle, AMPMODU Mod IV Series, 2Rows

22 矩形 - 外壳 插座 黑色 0.100"(2.54mm)


得捷:
CONN RCPT HSG 22POS 2.54MM


贸泽:
Headers & Wire Housings 22 MODIV HSG COMP DR


艾睿:
Think of TE Connectivity&s;s 1-87456-7 discrete wire housing the next time you need a connection between two circuits but a direct linkage is not possible. This RCP connector has 22 RCP contacts. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. This device has a maximum current rating of 3 A/contact. This rectangle connector has an operating temperature of -65 to 105 °C. 1-87456-7 is housed in black nylon. This product is 30.48 mm long, 6.1 mm tall and 15.24 mm deep.


安富利:
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount


Chip1Stop:
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Package


Verical:
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Black Package


Newark:
# AMP - TE CONNECTIVITY  1-87456-7  Wire-To-Board Connector, 2.54 mm, 22 Contacts, Receptacle, AMPMODU Mod IV Series, 2 Rows


Powell:
.100 AMPMODU Headers, Housings & Contacts


Electro Sonic:
22 MODIV HSG COMP DR .100CL


1-87456-7中文资料参数规格
技术参数

触点数 22

极性 Female

额定电压AC 250 V

绝缘电阻 5000 MΩ

排数 2

易燃性等级 UL 94 V-0

针脚数 22

触点额定电流 3.00 A

额定电流Max 3A/触头

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 250 VAC

额定电压 250 VAC

封装参数

安装方式 Through Hole

引脚间距 2.54 mm

外形尺寸

高度 15.24 mm

引脚间距 2.54 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Beryllium Copper

工作温度 -65℃ ~ 105℃

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买1-87456-7
型号: 1-87456-7
描述:AMP - TE CONNECTIVITY 1-87456-7 Wire-To-Board Connector, 2.54mm, 22Contacts, Receptacle, AMPMODU Mod IV Series, 2Rows
