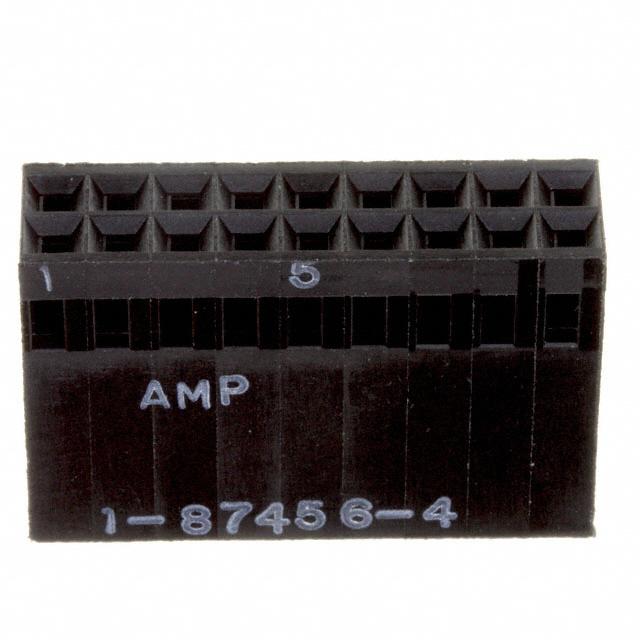

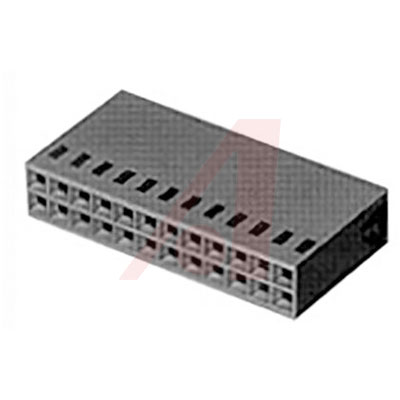

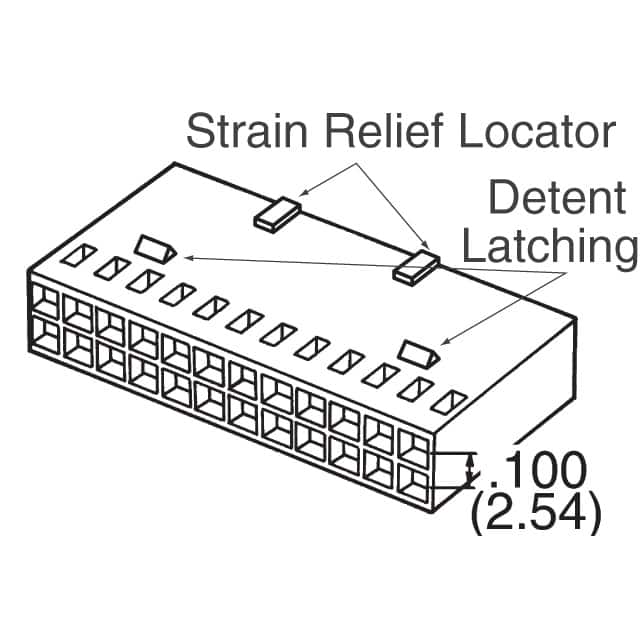

1-87456-4

AMP FROM TE CONNECTIVITY  1-87456-4  绝缘压穿 IDC 连接器

18 矩形 - 外壳 插座 黑色 0.100"（2.54mm）

得捷:
CONN RCPT HSG 18POS 2.54MM

e络盟:
绝缘压穿 IDC 连接器

艾睿:
Ensure a complete connection between two different circuit boards is made using TE Connectivity&s;s 1-87456-4 discrete wire housing. This RCP connector has 18 RCP contacts. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a receptacle type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. This rectangle connector has an operating temperature of -65 to 105 °C. 1-87456-4 is housed in black nylon. This product is 25.4 mm long, 6.1 mm tall and 15.24 mm deep.

Allied Electronics:
CONNECTOR, HOUSING, RECEPTACLE, MOD IV, 18 POSITION, DUAL ROW, MARKED

安富利:
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount

Chip1Stop:
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount

Verical:
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Black Bag

Newark:
# AMP - TE CONNECTIVITY  1-87456-4  Wire-To-Board Connector, 2.54 mm, 18 Contacts, Receptacle, AMPMODU Mod IV Series, 2 Rows

MASTER:
HOUSING, MOD IV DOUBLE ROW, .100X.100 C/L CRIMP SNAP-IN, SHORT ENTRY

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
18 MODIV HSG DR MRKD .100CL

Electro Sonic:
18 MODIV HSG DR MRKD .100CL
