1375875-2

1375875-2图片1
1375875-2图片2
1375875-2图片3
1375875-2图片4

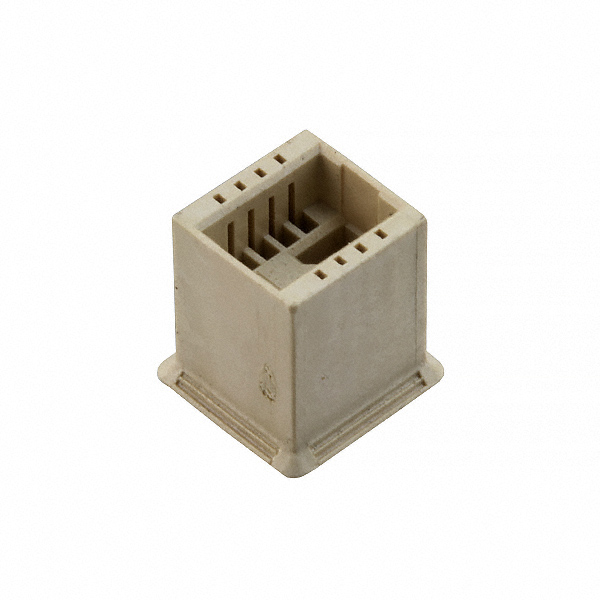

1375875-2图片5
1375875-2概述

集管和线壳 PLUG HSG 8 POS 0.8MM MICRO INT

8 Rectangular Connectors - Housings Plug Natural 0.031" 0.80mm


得捷:
CONN PLUG HSG 8POS 0.80MM


贸泽:
集管和线壳 PLUG HSG 8 POS 0.8MM MICRO INT


艾睿:
This 1375875-2 discrete wire housing from TE Connectivity will house one or multiple wires and channels. This PL connector has 8 PL contacts. It has a straight body orientation. This is a 2-row connector. It has a plug type gender. Its pitch is 0.8 mm. This rectangle connector has an operating temperature of -55 to 85 °C. 1375875-2 is housed in natural liquid crystal polymer. This product is 6.55 mm long, 6.3 mm tall and 6.74 mm deep.


安富利:
Conn Housing PL 8 POS 0.8mm Crimp ST


Chip1Stop:
Conn Housing PL 8 POS 0.8mm Crimp ST Cable Mount


Powell:
0.8mm AMPMODU Micro Interconnect


1375875-2中文资料参数规格
技术参数

触点数 8

绝缘电阻 500 MΩ

排数 2

易燃性等级 UL 94 V-0

针脚数 8

工作温度Max 85 ℃

工作温度Min -55 ℃

外形尺寸

长度 6.55 mm

宽度 6.74 mm

高度 6.3 mm

物理参数

外壳颜色 Natural

颜色 Natural

工作温度 -55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

ELV标准 Compliant

数据手册
