1-87499-5

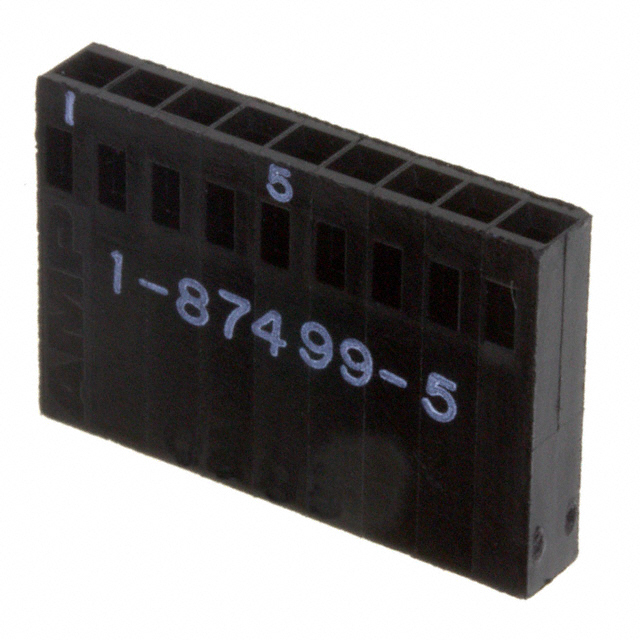

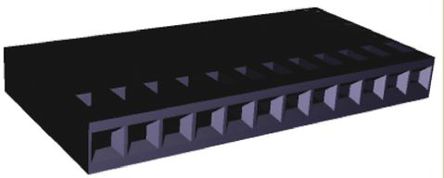

AMP FROM TE CONNECTIVITY  1-87499-5  绝缘压穿 IDC 连接器

AMPMODU Mod IV 已装线非极化插座式插座外壳

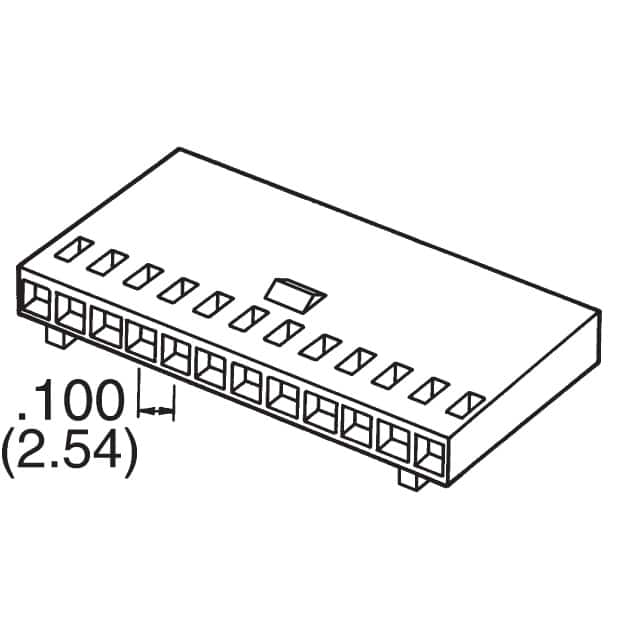

AMPMODU Mod IV 已装线非极化插座式插座外壳，具有 2.54mm 中心线。 这些非极化插座式插座外壳由黑色、阻燃热塑性塑料制成，提供单排或双排配置且具有压印空心标识（有关详细信息，请参见数据表）。

有两种可与这些插座式插座外壳一起使用的键接插头：库存号 681-2644，其插入标准或中间压力插座触点；以及库存号 509-2076，其直接插入外壳。

有关合适的插座触点，请参见库存号 719-4284、680-2348 和 719-4294（典型）。

得捷:
CONN RCPT HSG 9POS 2.54MM

欧时:
TE Connectivity 连接器外壳 AMPMODU Mod IV 系列 2.54mm节距 1行 9路 母 电缆安装 1-87499-5

e络盟:
绝缘压穿 IDC 连接器

艾睿:
This 1-87499-5 discrete wire housing from TE Connectivity can also provide a locking mechanism for conditions where a lot of mechanical jarring is seen. This RCP connector has 9 RCP contacts. It has a straight body orientation. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 3 A/contact. 1-87499-5 is housed in black thermoplastic. This rectangle connector has an operating temperature of -65 to 105 °C. This product is 22.99 mm long, 3.56 mm tall and 15.24 mm deep.

Allied Electronics:
Housing, Connector; Mod IV; Single; 9; 250 VAC; 3 A; 750 V; -65 to 105 degC; Ye

Chip1Stop:
Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount

Verical:
Conn Housing RCP 9 POS 2.54mm Crimp ST Cable Mount Black Bag

Newark:
# AMP - TE CONNECTIVITY  1-87499-5  Wire-To-Board Connector, 2.54 mm, 9 Contacts, Receptacle, AMPMODU Mod IV Series, 1 Rows

MASTER:
HOUSING, MOD IV, SINGLE ROW, .100 CL, CRIMP SNAP-IN

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
09 MODIV HSG SR MRKD .100CL

Electro Sonic:
09 MODIV HSG SR MRKD .100CL
