1-1470107-2

1-1470107-2图片1
1-1470107-2图片2
1-1470107-2图片3

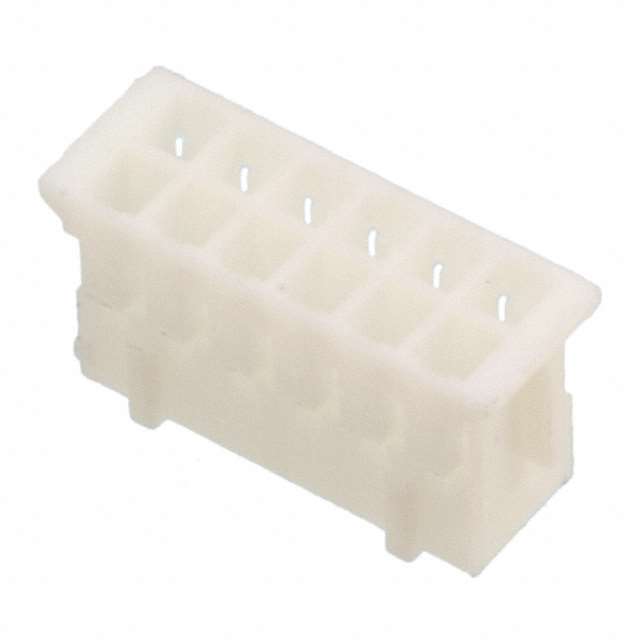

1-1470107-2图片4
1-1470107-2图片5

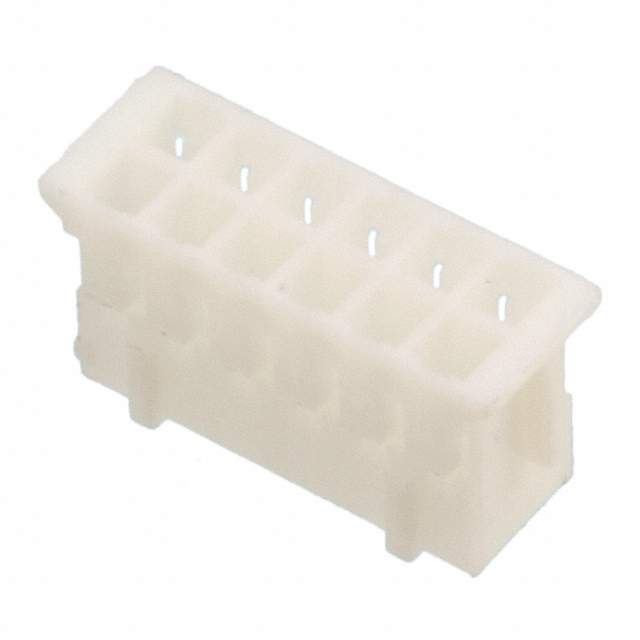

1-1470107-2图片6
1-1470107-2图片7
1-1470107-2概述

塑壳

12 矩形 - 外壳 插座 白色 0.079"(2.00mm)


得捷:
CONN RCPT HSG 12POS 2.00MM


立创商城:
塑壳


贸泽:
Headers & Wire Housings 12P 2.0mm Pitch Crmp Housing


艾睿:
This 1-1470107-2 discrete wire housing from TE Connectivity can house one or multiple wires and channels for both small electronic devices and larger power applications. This RCP connector has 12 RCP contacts. It has a straight body orientation. Its pitch is 2 mm. This is a 2-row connector. It has a receptacle type gender. This product is 14 mm long, 5.1 mm tall and 7.4 mm deep. 1-1470107-2 is housed in white thermoplastic.


安富利:
Conn Housing RCP 12 POS 2mm Crimp ST Cable Mount


Powell:
2.0mm Pitch Crimp Housing


1-1470107-2中文资料参数规格
技术参数

触点数 12

排数 2

易燃性等级 UL 94 V-0

针脚数 12

额定电流Max 3A/触头

工作温度Max 85 ℃

工作温度Min -25 ℃

额定电压Max 100 VDC

封装参数

封装 Housing

外形尺寸

高度 7.4 mm

封装 Housing

物理参数

外壳颜色 White

颜色 White

触点材质 Copper Alloy

外壳材质 Thermoplastic

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Signal, Power

符合标准

RoHS标准 RoHS Compliant

含铅标准 Contains Lead

ELV标准 Compliant
