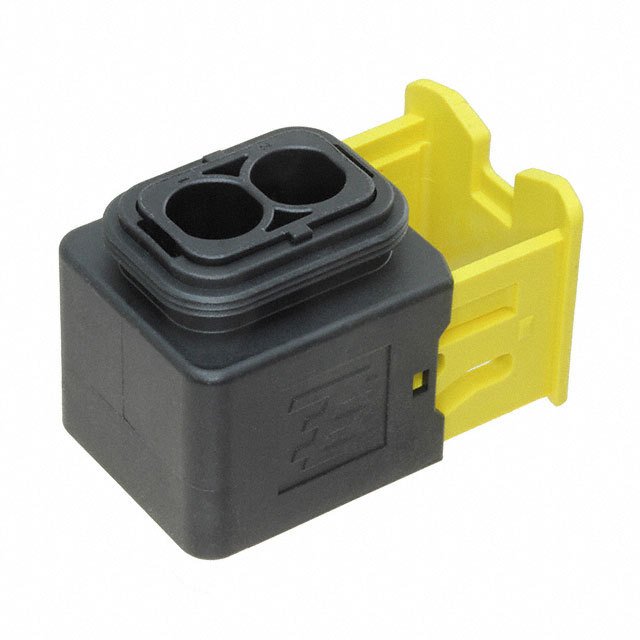

1-1564542-1

车用连接器外壳, HDSCS Series, 插座, 2 路, AMP HDSCS系列插座触芯, PBT聚对苯二甲酸乙二醇酯, 玻璃纤维主体, IP67

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities. These cable to cable and cable to device connectors have a slide lock for mating. They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

得捷:
2POS,AMP MCP6.3/4.8K,REC HSG,A

立创商城:
1-1564542-1

e络盟:
车用连接器外壳, HDSCS Series, 插座, 2 路, AMP HDSCS系列插座触芯, PBT聚对苯二甲酸乙二醇酯, 玻璃纤维主体, IP67

艾睿:
TE Connectivity&s;s 1-1564542-1 discrete wire housing can make a durable connection between discrete wires. This RCP connector has 2 RCP contacts. It has a straight body orientation. Its pitch is 9 mm. It has a maximum voltage rating of 42 VDC. It has a receptacle type gender. This is a 1-row connector. This product is 44 mm long, 25.7 mm tall and 31.25 mm deep. This rectangle connector has an operating temperature of -40 to 140 °C. 1-1564542-1 is housed in black polybutylene terephthalate.

安富利:
Conn Housing RCP 2 POS Crimp ST Cable Mount Loose Piece

Chip1Stop:
Conn Housing RCP 2 POS 9mm Crimp ST Cable Mount Box

Verical:
Conn Housing RCP 2 POS 9mm Crimp ST Cable Mount Black Box Automotive

Newark:
2POS,AMP MCP6.3/4.8K,REC HSG,A

MASTER:
2POS. AMP MCP6.3/4.8K, REC HSG, ASSY 2pos. AMP MCP6.3/4.8k, Buchsengehaeuse HDSC

Online Components:
2POS. AMP MCP6.3/4.8K, REC HSG, ASSY 2pos. AMP MCP6.3/4.8k, Buchsengehaeuse HDSC

Electro Sonic:
2POS,AMP MCP6.3/4.8K,REC HSG,A
