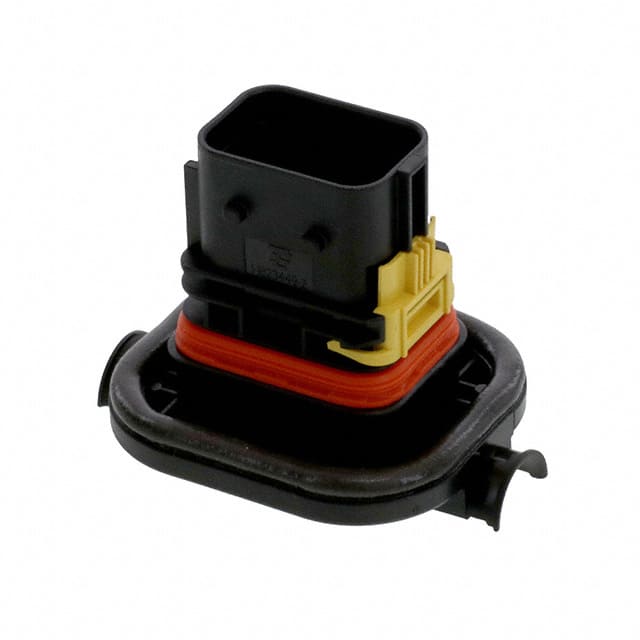

1-1823448-2图片8
1-1823448-2概述

22POS, MIXED,TAB HSG,ASSY,SEALED

LEAVYSEAL housings are heavy-duty, environmentally sealed connectors that are available in arrangements from 15 to 92 positions. These connectors are available in six sizes, utilize a lever lock system for mating, and feature an integrated cable attachment. The housings accept AMP MCP 6.3/4.8K, 2.8, and 1.5K box and blade contacts and carry up to 40 amps.


得捷:
CONN PLUG HSG 22POS SEALED


艾睿:
Conn Housing RCP 22 POS 1.6mm/2.8mm RA Cable Mount Automotive Box


1-1823448-2中文资料参数规格
技术参数

触点数 22

排数 4,3

易燃性等级 UL 94 V-0

工作温度Max 120 ℃

工作温度Min -40 ℃

额定电压Max 42 VDC

外形尺寸

高度 66.7 mm

物理参数

外壳颜色 Black

颜色 Black

其他

产品生命周期 Active

包装方式 Box

制造应用 Signal

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

数据手册

在线购买1-1823448-2
型号: 1-1823448-2
描述:22POS, MIXED,TAB HSG,ASSY,SEALED
