1368-A-36

POMONA  1368-A-36  测试引线, 914.4MM, 300VRMS

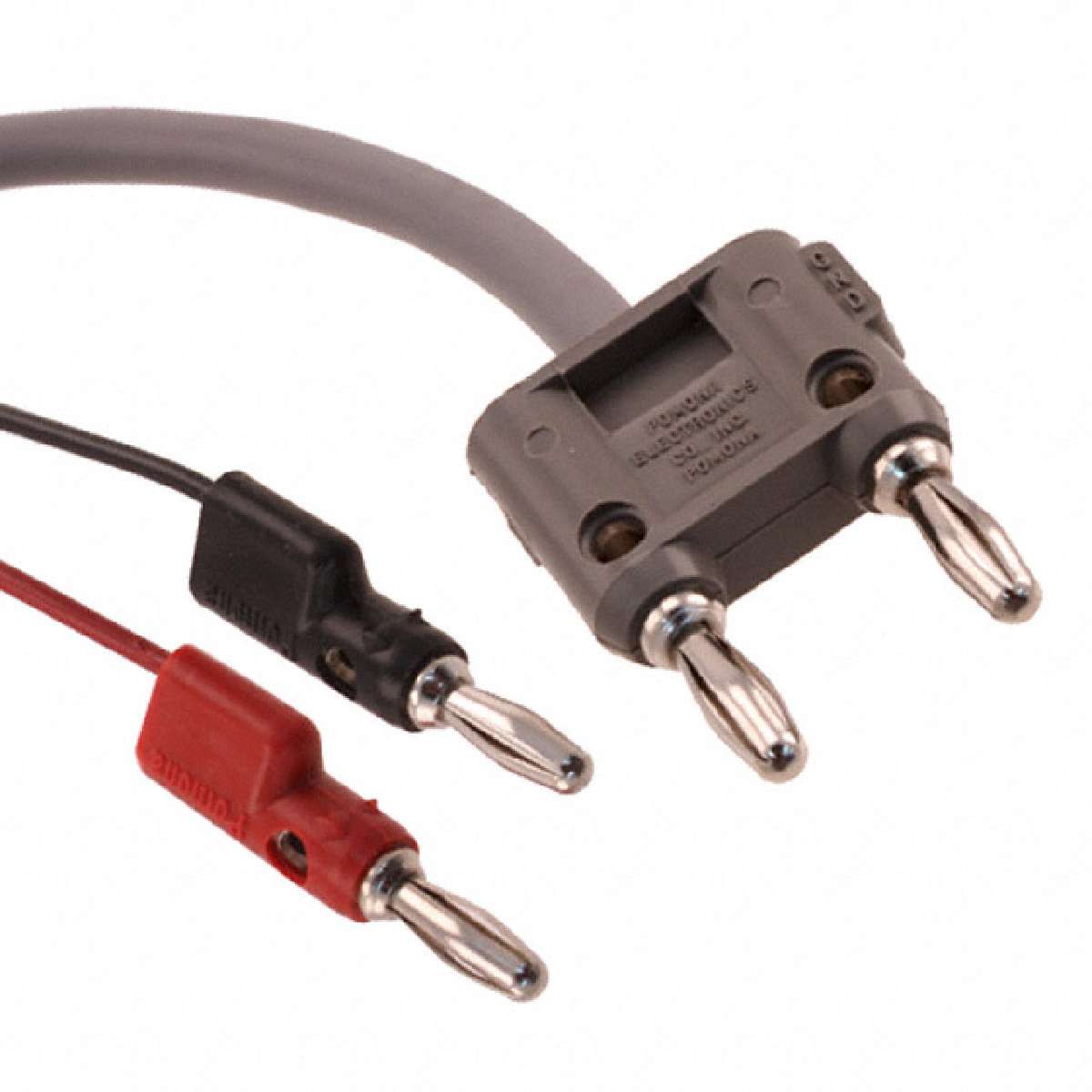

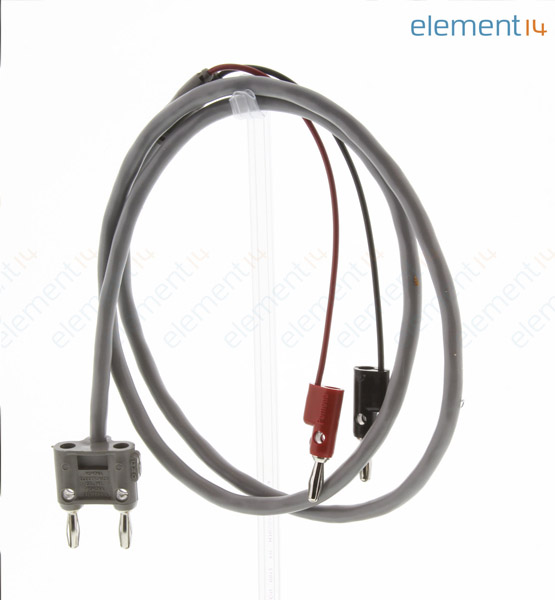

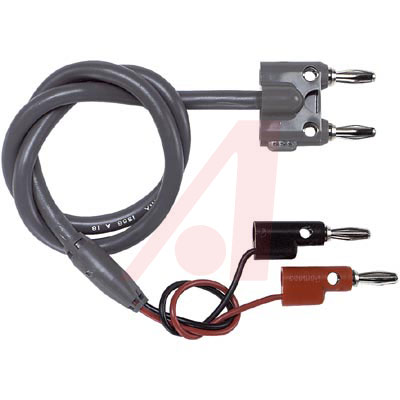

The is a 36-inch Test Lead with 4mm double to single banana plug. The banana plug with nickel-plated brass plug body, nickel-plated beryllium copper spring, polypropylene molded to the plug bodies and cable insulation, 18AWG stranding PVC insulated 0.25-inch 2 conductor twisted pair cable. PVC molded to the breakout leads and cable, 20AWG stranding PVC insulated 0.087-inch outer diameter breakout leads. Ideal for connecting power supply or test equipment to bread boards.

.

Black and red insulator

.

300Vrms Operating voltage

.

50°C Maximum operating temperature
