1N4619UR

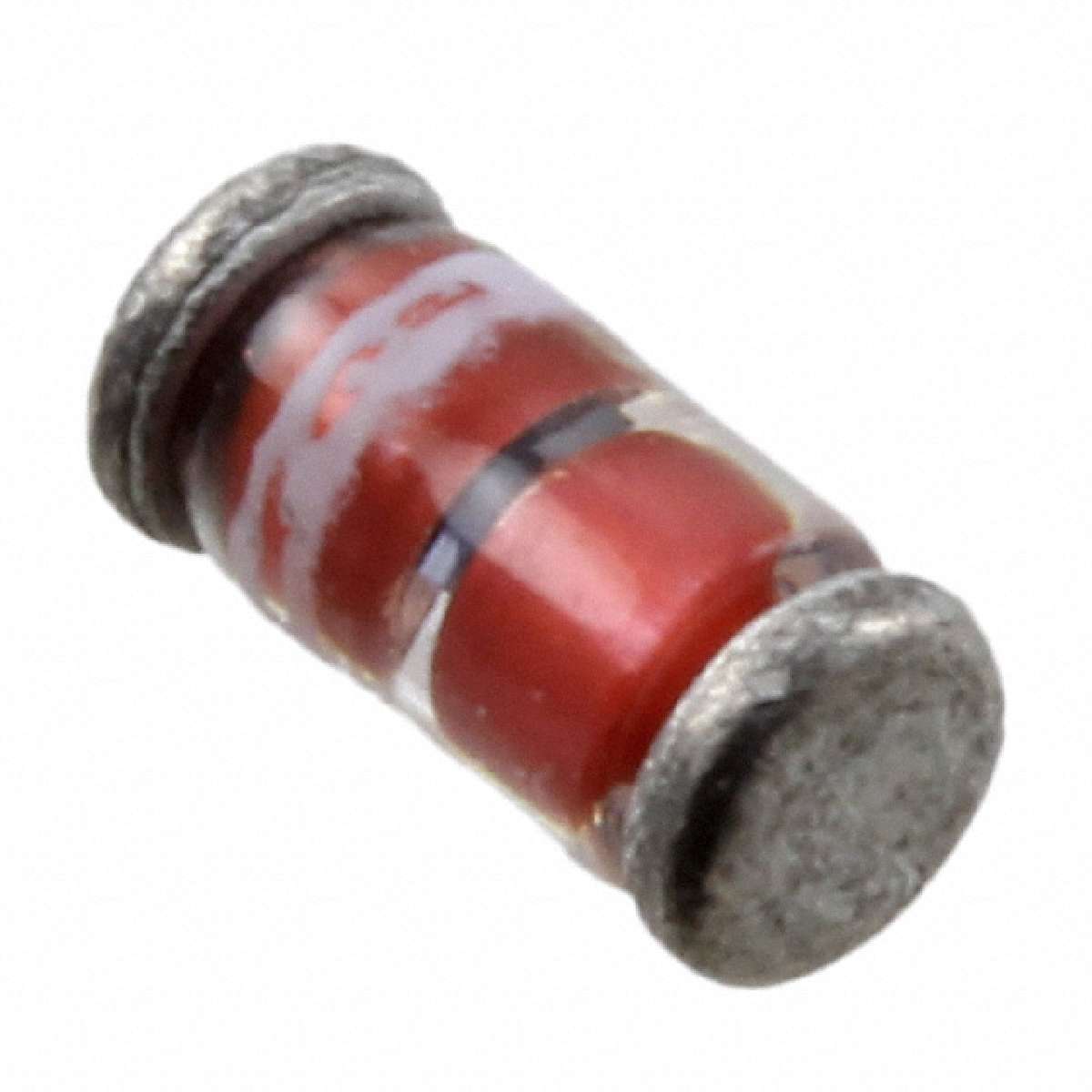

玻璃表面贴装0.5瓦齐纳二极管 GLASS SURFACE MOUNT 0.5 WATT ZENERS

DESCRIPTION

The 1N4099UR thru 1N4135UR and 1N4614UR thru 1N4627UR series of 0.5 watt glass surface mount DO-213AA Zener voltage regulators provides a selection from 1.8 to 100 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. These are also available with an internal-metallurgical-bond option by adding a “-1” suffix see separate data sheet including JAN, JANTX, and JANTXV military qualifications. also offers numerous other Zener products to meet higher and lower power applications.

FEATURES

• Surface mount equivalent to JEDEC registered 1N4099 thru 1N4135 and 1N4614 thru 1N4627 series

• Internal metallurgical bond option available by adding a “-1” suffix that also includes JAN, JANTX, and JANTXV qualifications per MIL-PRF-19500/435 see separate data sheet for same part numbers with “-1” suffix

• DO-7 or DO-35 glass body axial-leaded Zener equivalents also available per JEDEC registration see separate data sheet for part numbers 1N4099 thru 1N4135 and 1N4614 thru 1N4627 series

APPLICATIONS / BENEFITS

• Regulates voltage over a broad operating current and temperature range

• Extensive selection from 1.8 to 100 V

• Standard voltage tolerances are plus/minus 5% with no suffix

• Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively

• Hermetically sealed surface mount package

• Nonsensitive to ESD per MIL-STD-750 Method 1020

• Minimal capacitance see Figure 3

• Inherently radiation hard as described in Microsemi MicroNote 050
