1瓦的金属外壳稳压二极管 1 WATT METAL CASE ZENER DIODES
DESCRIPTION

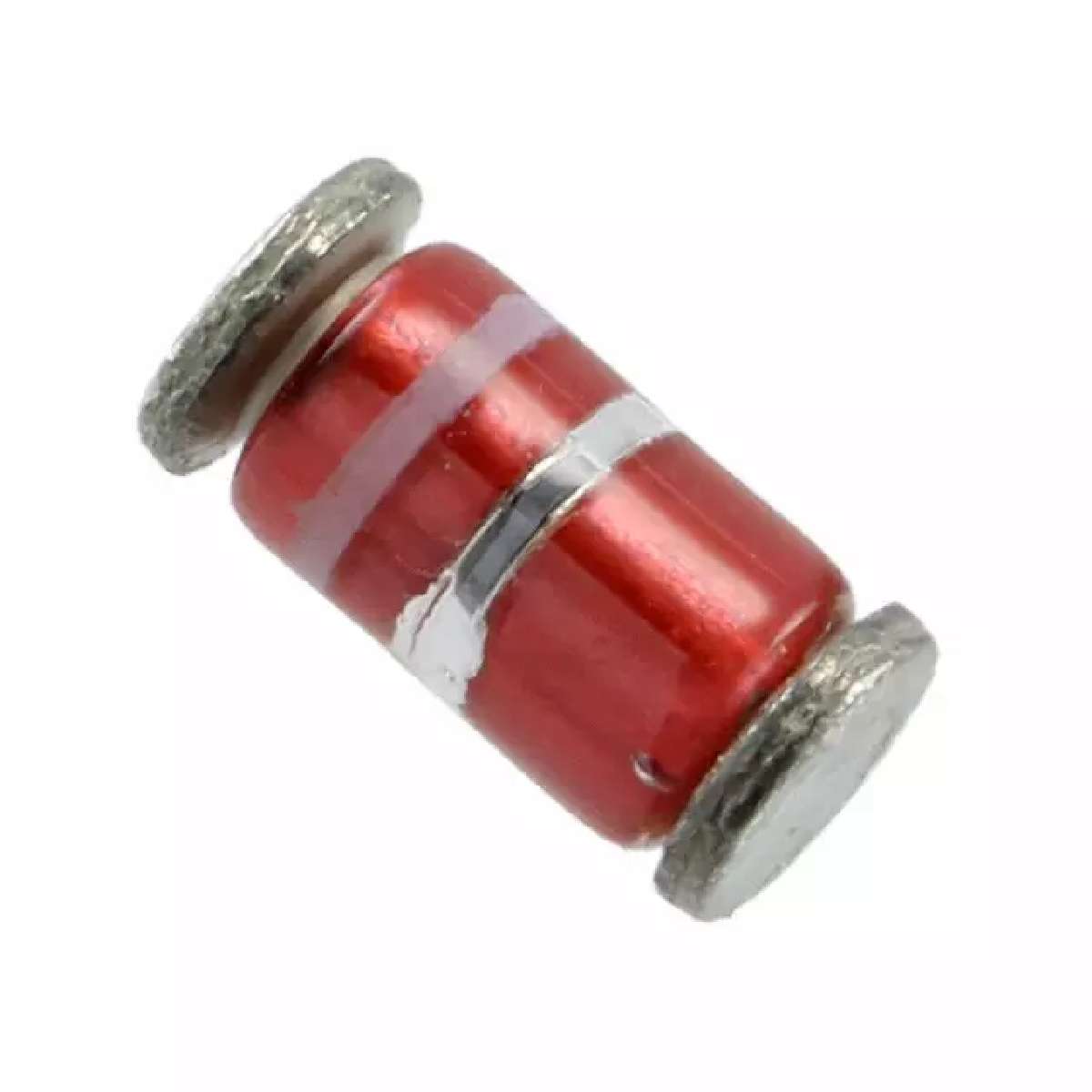

This surface mountable zener diode seriesis similar to the 1N3016 thru 1N3051 JEDEC registrationin the DO-13 package except that it meets the surface mount DO-213AB outline. It is an ideal selection for applications of high density and low parasitic requirements. Due to its glass hermetic seal
qualities andmetallurgically enhanced internal construction, it is also well suited for high-reliability applications.
FEATURES
• Leadless surface mount package equivalents to the JEDEC registered 1N3016 thru1N3051except with higher power rating of 1.5 Watts
• Ideal for high-density mounting
• Voltage range: 6.8 to 200 volts
• Hermetically sealed, double-slug glass construction
• Metallurgically enhanced contact construction.
• Options for screening inaccordance with MIL-PRF-19500/115 for JAN, JANTX, JANTXV, and JANS
with MQ, MX, MV, or MSP prefixes respectively for part numbers, e.g. MX1N3016BUR-1,
MV1N3051BUR-1, etc.
• Axial lead “thru-hole” DO-13 packages per JEDEC registration available as 1N3016B thru 1N3051B see separate data sheet withMIL-PRF-19500/115 qualification
APPLICATIONS/ BENEFITS
• Regulates voltage over a broad operating current and temperature range
• Wide selection from 6.8 to 200V
• Tight voltage tolerances available
• Lowreverse leakage currents
• Leadless package for surfacemounting
• Ideal for high-density mounting
• Metallurgically enhanced internal contact design for greater reliabilityand lower thermal resistance
• Nonsensitive to ESD
• Hermetically sealed glass package
• Specified capacitance seeFigure 2
• Inherentlyradiation hard as described in MicroNote 050
