Bench Power Supply 0V to 30V 1 999.9A

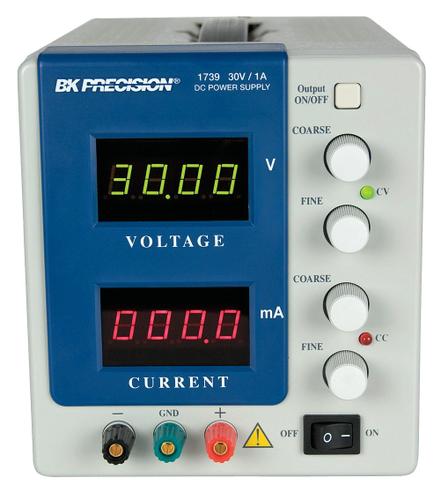

If you think all 30 V DC power supplies are created equal, think again. The new model for example, is a high resolution, low current DC power source with excellent load regulation and low noise characteristics - anything but ordinary. Implementing a MOSFET circuit design and high quality components with very low temperature coefficients, the 1739 is able to create an extremely stable output and generate current down to as low as 1 mA with a 100 μA settable resolution. The power supply also uses a high performance AC line filter to minimize noise on the power line before rectification, allowing for verylow ripple and noise at the output.
* Low 1 mA settable current limit with 0.1 mA resolution
* Output on/off button
* Exceptionally low current ripple and noise <0.4 mArms
* Excellent regulation
* Constant voltage CV and constant current CC operation
* Two large, easy-to-read LED displays provide good visibility in bright or low light conditions
* CV and CC mode indicator
* Automatic recall of saved voltage and current settings upon power-up
* RS-232 interface
* Isolated output
* Overload and reverse polarity protection
* Power-on self test
频率 2.65 kHz
额定功率 70.0 W
输出接口数 1
输出电压 0V ~ 30V
输出电流 ≥0.00 A
输出电压Max 30 V
输出电压Min 0 V
输出电流Max 1 A
输出电流Min 0 A
工作温度Max 40 ℃
工作温度Min 0 ℃
电源电压 110VAC, 220VAC
电源电压Max 220 VAC
电源电压Min 110 VAC
输入电压 110VAC, 220VAC
长度 318 mm
宽度 140 mm
高度 158 mm
重量 4.1 kg
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准
ECCN代码 EAR99
