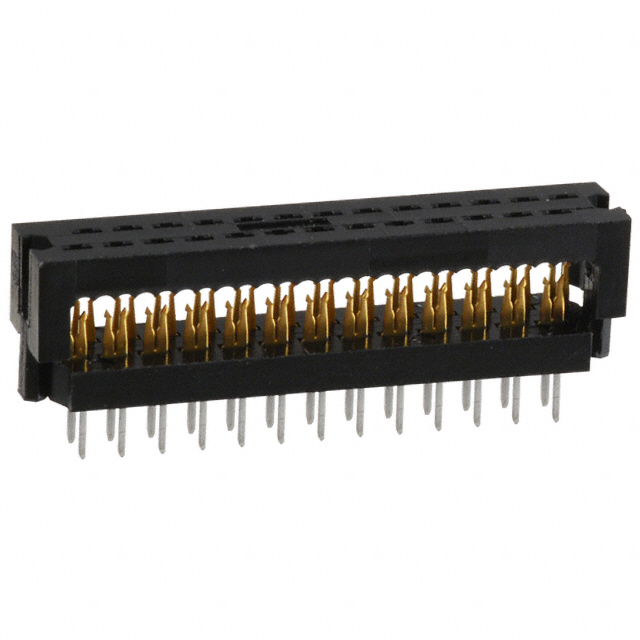

1-746610-4

集管和线壳 .1CL IDC PLG 2X08P

16 DIP PLUG, 100CL, LEAD FREE

Product Highlights

Connector Type = DIP Dual In Line Package

Number of Positions = 16

Plug

Without Mating Polarization

Terminate To Printed Circuit Board

得捷:
CONN DIP HDR IDC 16POS VERT

欧时:
16 DIP PLUG, 100CL, LEAD FREE

贸泽:
集管和线壳 .1CL IDC PLG 2X08P

艾睿:
Make strong and binding connections on your circuit boards by adopting this idc connector 1-746610-4 connector from TE Connectivity. This PL connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a plug type gender. This is a 2-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 24.89 mm long, 6.43 mm tall and 7.06 mm deep. It uses the solder termination method. This connector has an operating temperature of -65 to 105 °C. 1-746610-4 is housed in black thermoplastic.

Allied Electronics:
Connector, Cable; DIP; 16; PCB; Phosphor Bronze; Thermoplastic; Black; UL 94V-0

安富利:
Conn IDC Connector M 16 POS 2.54mm IDT RA Cable Mount

Chip1Stop:
Conn IDC Connector PL 16 POS 2.54mm Solder RA Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  1-746610-4  Wire-To-Board Connector, 2.54 mm, 16 Contacts, Header, AMP-LATCH Series, IDC / IDT, 2 Rows

MASTER:
KIT, AMP-LATCH DIP PLUG, PREASSEMBLED, .100 X .100 CENTERS,

Powell:
Ribbon Cable Connectors AMP-LATCH

Online Components:
16 DIP PLUG, 100CL, LEAD FREE

Electro Sonic:
16 DIP PLUG, 100CL, LEAD FREE
