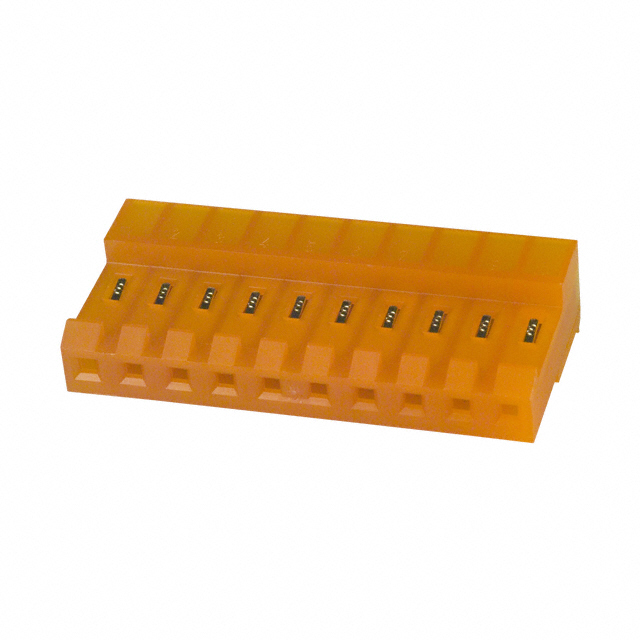

集管和线壳 CLOSED W/O TABS 10P L.R. orange 18 AWG
10 位置矩形连 插座 IDC 锡 18AWG
得捷:
CONN RCPT 10POS IDC 18AWG TIN
贸泽:
集管和线壳 CLOSED W/O TABS 10P L.R. orange 18 AWG
艾睿:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Automotive Bag/Box
Allied Electronics:
MTA-156 CONNECTOR TIN, 10P MTA156 CONN ASSY 18AWG ORA
Chip1Stop:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount Bag
Verical:
Conn IDC Connector F 10Power POS 3.96mm IDT RA Cable Mount Automotive Bag/Box
Online Components:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount
Electro Sonic:
Conn IDC Connector F 10 POS 3.96mm IDT RA Cable Mount
触点数 10
极性 Female
线规 18 AWG
触点电镀 Tin Lead
额定电压AC 600 V
额定电流 7.00 A
绝缘电阻 5000 MΩ
排数 1
易燃性等级 UL 94 V-2
针脚数 10
接触电阻 3 mΩ
拔插次数 50
带凸肩 No
额定电流Max 7A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 600 VAC
接触电阻Max 3 mΩ
引脚间距 3.96 mm
长度 1.56 in
宽度 9.02 mm
高度 9.02 mm
引脚间距 3.96 mm
外壳颜色 Orange
颜色 Orange
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Superseded
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
1-640426-0 TE Connectivity 泰科 | 当前型号 | 当前型号 |
4-640426-0 泰科 | 功能相似 | 1-640426-0和4-640426-0的区别 |
