RAFI 1.15.108.351/0000 照明式按钮开关, 1常开 / 1常闭, 关-开, 4 A

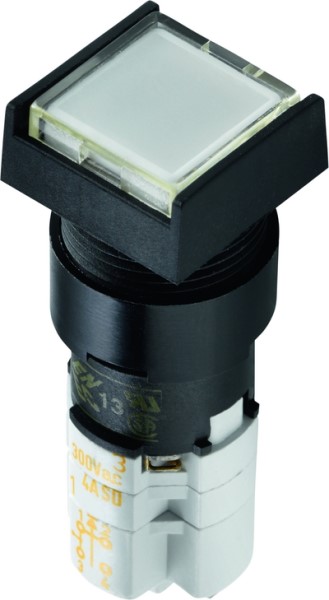

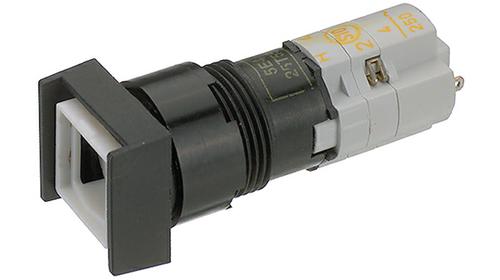

The is an illuminated Pushbutton Switch with Ag contacts, square black collar and flush lens. This switch is designed with snap-action bridge contact system.
- .
- Ring nut mounting
- .
- -25 to 70°C Operating temperature range
e络盟:
按钮开关, 标准, 16.2 mm, SPST-常开, SPST-常闭, 关-开, 正方形
艾睿:
Manually control your circuit components with this 1.15.108.351/0000 push button switch from Rafi GmbH &a; Co. KG. It has a DPST configuration. This device has a maximum current rating of 4. This push switch has a minimum operating temperature of -25 °C and a maximum of 55 °C. The 1.15.108.351/0000 push switch has a solder termination style. This product is 18 mm long. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.
Chip1Stop:
Switch Push Button N.O./N.C. DPST Flush Square Button 4A 250VAC 250VDC Latching Solder Panel Mount
Newark:
# RAFI 1.15.108.351/0000 Illuminated Pushbutton Switch, 1NC / 1NO, Off-On, 4 A
Electro Sonic:
LUMOTAST 75 IP40 - Illuminated pushbutton, flush lens, square collar, latching, housing
