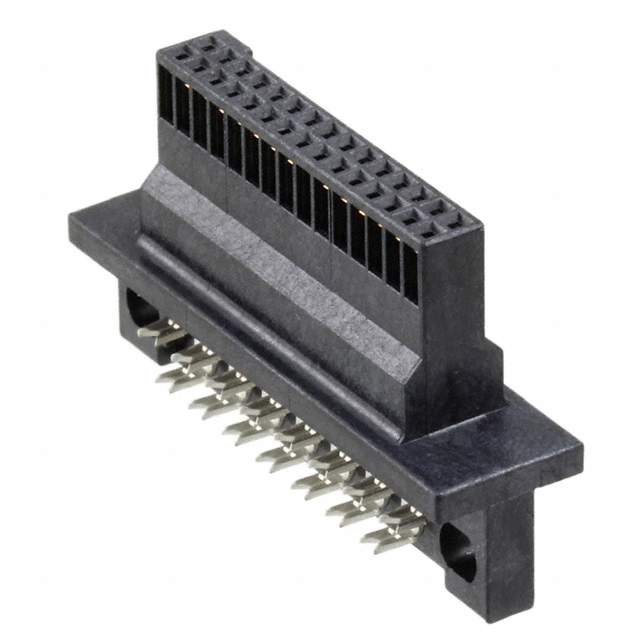

104893-3

Conn IDC Connector RCP 30POS 1.27mm IDT ST Cable Mount Tube

30 位置矩形连 插座 IDC 镀金 28AWG

得捷:
CONN RCPT 30POS IDC 28AWG GOLD

艾睿:
As an added safety precaution, the idc connector 104893-3 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a maximum voltage rating of 30 VAC. It has a receptacle type gender. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. This product is 27.38 mm long, 15.94 mm tall and 15.94 mm deep. 104893-3 is housed in black liquid crystal polymer. It uses the idt termination method.

安富利:
Conn IDC Connector RCP 30 POS 1.27mm IDT ST Cable Mount Tube

Verical:
Conn Socket Strip RCP 30 POS 1.27mm IDT ST Cable Mount Box/Tube

Powell:
.050 Inch AMPMODU 50/50 Grid
