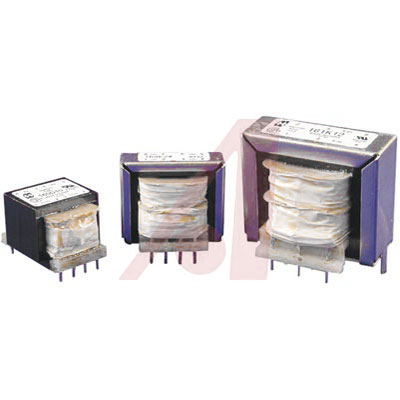

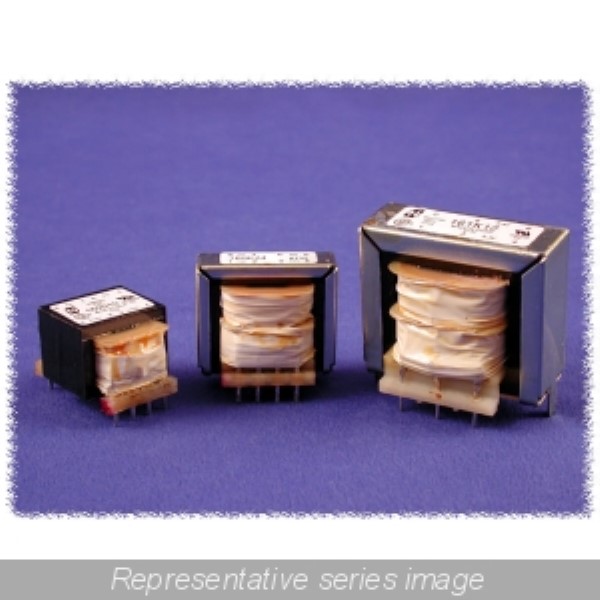

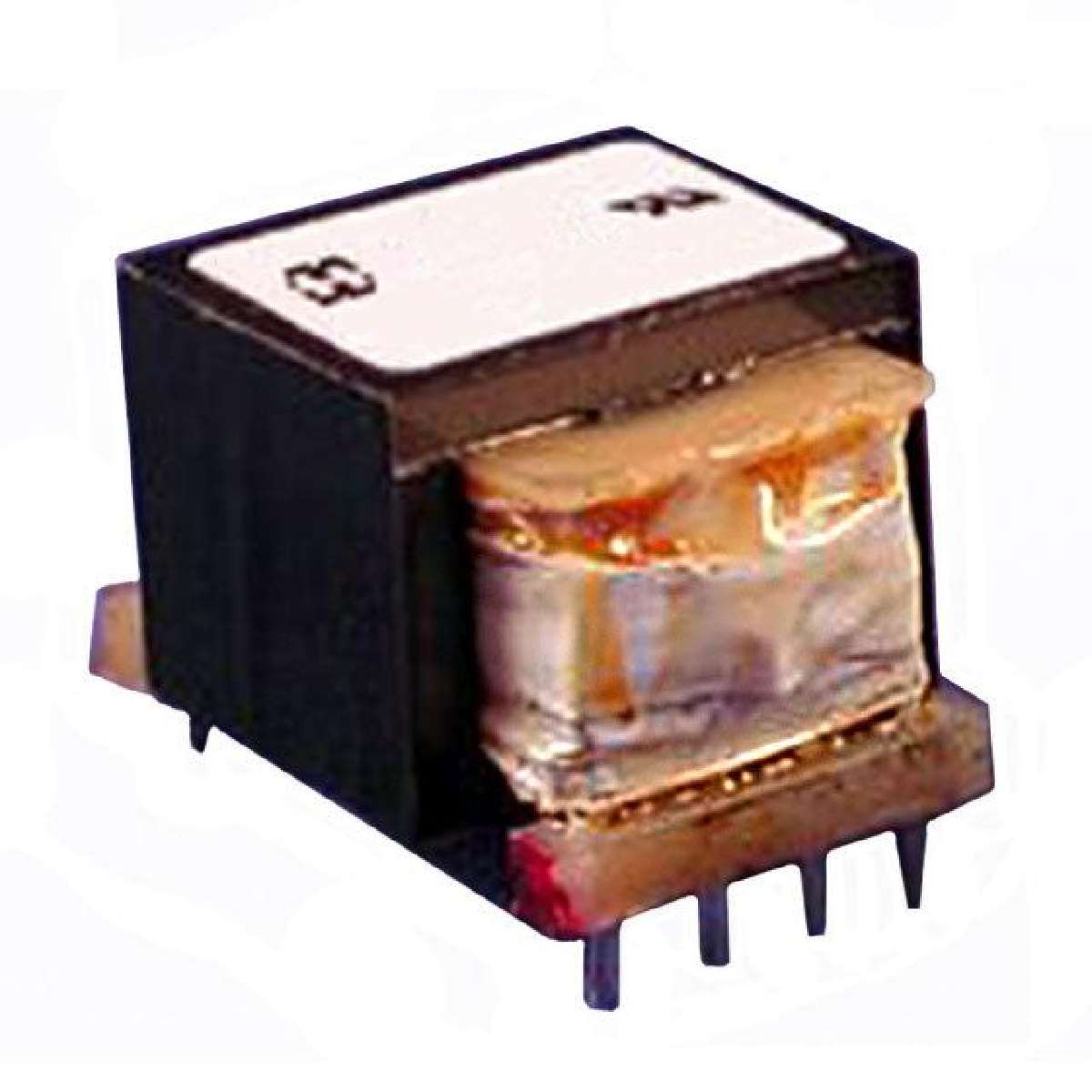

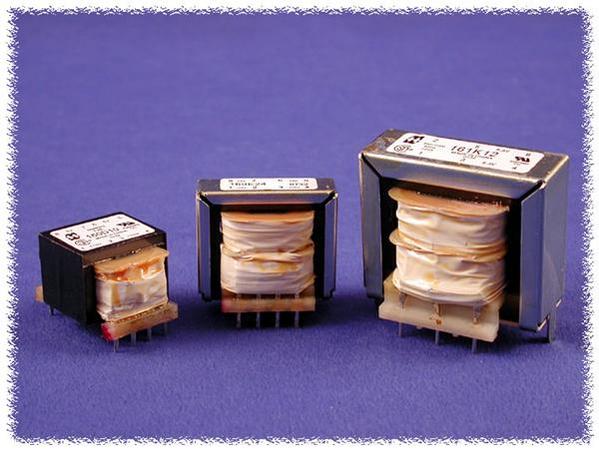

160D40

Power Transformer 115/230VAC Primary 20/40VAC Secondary 40/20mA Output 1VA 50/60Hz

**Features:**

* Vertical Mount, Split Bobbin Design

* Dual Winding Secondaries, Non-Concentrically Wound

* Low Primary to Secondary Coupling — No Electrostatic Shield Required

* High Insulation — Hipot of 2,000 VRMS

* Class B Insulation — 130°C

* CSA Certified and UL Recognized

得捷:
PWR XFMR LAMINATED 1VA TH

艾睿:
Power Transformer 2000Vrms 1VA 8 Terminal PC Pin Thru-Hole

Allied Electronics:
TRANSFORMER, PC MT, 1VA, 40VCT@20MA, 20V@40MA

Verical:
Power Transformer 2000Vrms 1VA 8 Terminal PC Pin Thru-Hole

Newark:
# HAMMOND  160D40  POWER TRANSFORMER

MASTER:
power, low volt, pc mount transformer

Online Components:
power, low volt, pc mount transformer
