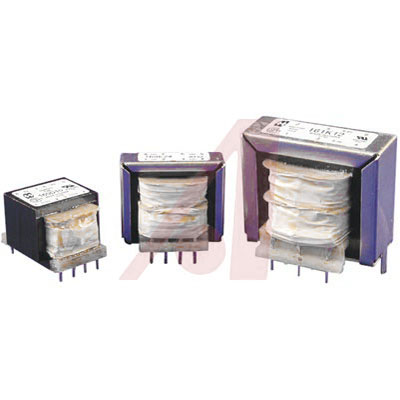

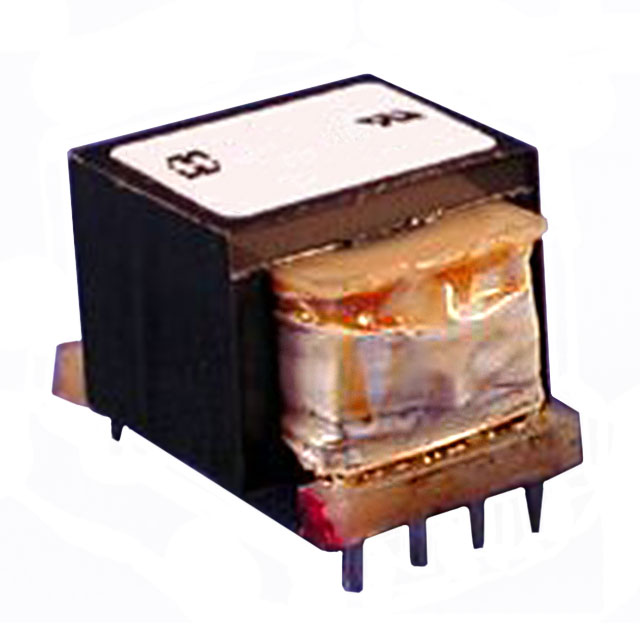

160D12

Power Transformer 115/230VAC Primary 6.3/12.6VAC Secondary 140/70mA Output 1VA 50/60Hz

**Features:**

* Vertical Mount, Split Bobbin Design

* Dual Winding Secondaries, Non-Concentrically Wound

* Low Primary to Secondary Coupling — No Electrostatic Shield Required

* High Insulation — Hipot of 2,000 VRMS

* Class B Insulation — 130°C

* CSA Certified and UL Recognized

得捷:
PWR XFMR LAMINATED 1VA TH

艾睿:
Power Transformer 2000Vrms 1VA 8 Terminal PC Pin Thru-Hole

Allied Electronics:
TRANSFORMER, PC MT, 1VA, 12.6VCT@70MA, 6.3V@140MA

Verical:
Power Transformer 2000Vrms 1VA 8 Terminal PC Pin Thru-Hole

Newark:
# HAMMOND  160D12  Isolation Transformer, Low Voltage, 1 VA, 1 x 115V, 1 x 230V, 2 x 6.3V, 140 mA

MASTER:
power, low volt, pc mount transformer
