160F20

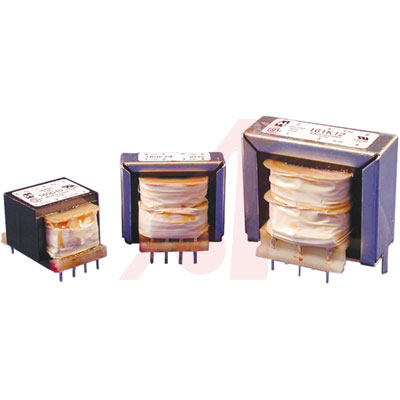

Power Transformer 115/230VAC Primary 10/20VAC Secondary 440/220mA Output 44VA 50/60Hz

**Features:**

* Vertical Mount, Split Bobbin Design

* Dual Winding Secondaries, Non-Concentrically Wound

* Low Primary to Secondary Coupling — No Electrostatic Shield Required

* High Insulation — Hipot of 2,000 VRMS

* Class B Insulation — 130°C

* CSA Certified and UL Recognized

得捷:
XFRMR LAMINATED 4.4VA THRU HOLE

艾睿:
Power Transformer 2000Vrms 4.4VA 8 Terminal PC Pin Thru-Hole

Allied Electronics:
TRANSFORMER; PC MT; 4.4VA; 20VCT@220MA; 10V@440MA

Newark:
# HAMMOND  160F20  Isolation Transformer, Low Voltage, 4.4 VA, 1 x 115V, 1 x 230V, 2 x 10V, 440 mA

MASTER:
power, low volt, pc mount transformer

Online Components:
power, low volt, pc mount transformer
