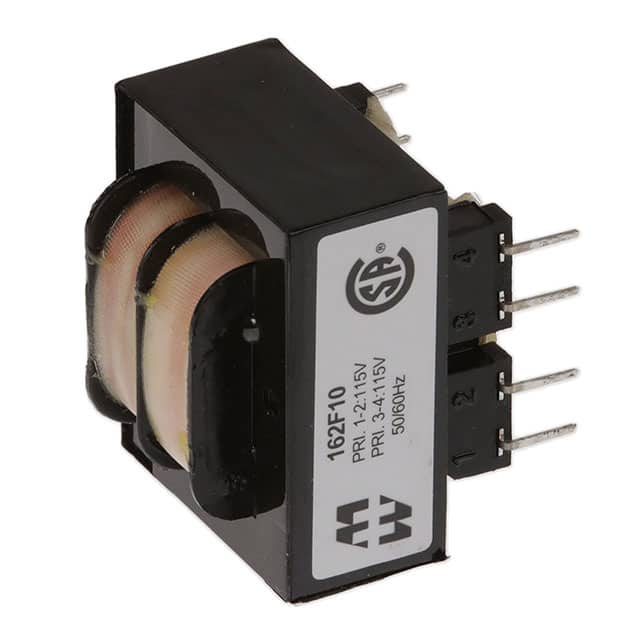

162F10

Hammond 115/230V Dual Primary - 6VA - 10V C.T. @ 0.6A Secondary RMS Low Voltage PCB Low Profile Transformer

**Features:**

* 50/60 Hz Current

* Low Profile, Split Bobbin Design

* Dual Winding Secondaries, Non-Concentrically Wound

* Low Primary to Secondary Coupling — No Electrostatic Shield Required

* High Insulation — Hipot of 2500 VRMS

* Class B Insulation — 130°C

* c UL us Recognized

得捷:
PWR XFMR LAMINATED 6VA TH

艾睿:
Power Transformer 2000Vrms 6VA 8 Terminal PC Pin Thru-Hole

Allied Electronics:
TRANSFORMER, PC MT, 6VA, 10VCT@.6A, 5V@1.2A

Newark:
# HAMMOND  162F10  TRANSFORMER DUAL PRIMARY, HORIZ. PC MOUNT

MASTER:
power, low volt, pc mount transformer

Online Components:
power, low volt, pc mount transformer
