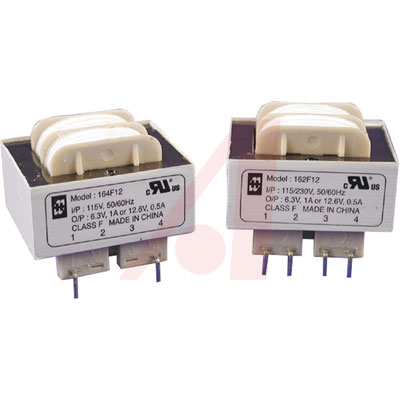

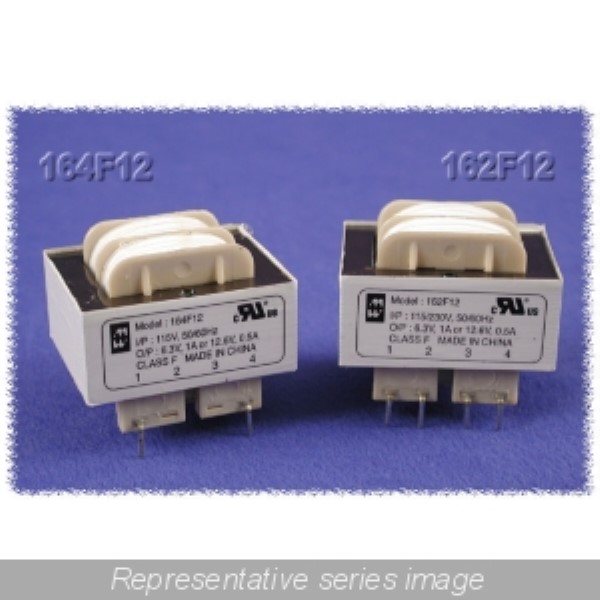

162F12

Power Transformer 115/230VAC Primary 6.3/12.6VAC Secondary 100/50mA Output 6VA 50/60Hz

**Features:**

* 50/60 Hz Current

* Low Profile, Split Bobbin Design

* Dual Winding Secondaries, Non-Concentrically Wound

* Low Primary to Secondary Coupling — No Electrostatic Shield Required

* High Insulation — Hipot of 2500 VRMS

* Class B Insulation — 130°C

* c UL us Recognized

得捷:
PWR XFMR LAMINATED 6VA TH

艾睿:
Power Transformer 2000Vrms 6VA 8 Terminal PC Pin Thru-Hole

Allied Electronics:
TRANSFORMER, PC MT, 6VA, 12.6VCT@.5A, 6.3V@1A

Verical:
Power Transformer 2000Vrms 6VA 8 Terminal PC Pin Thru-Hole

Newark:
# HAMMOND  162F12  Isolation Transformer, Low Voltage, 6 VA, 1 x 115V, 1 x 230V, 2 x 6.3V, 1 A

MASTER:
power, low volt, pc mount transformer

Online Components:
power, low volt, pc mount transformer
