167S25

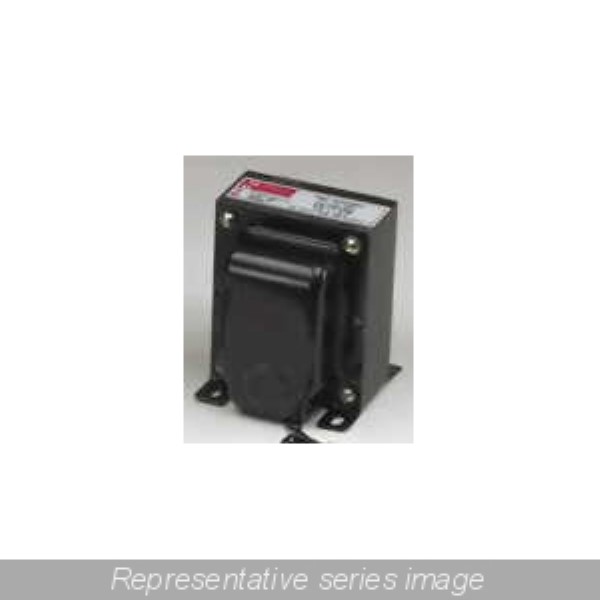

Power Transformer 115VAC Primary 25VAC Secondary 10A Output 250VA Wire Leads Terminals

**Key Features**

* Economical Single Primary 115 VAC, 60 Hz. or 117 VAC, 50/60 Hz. — If You Require Dual Primary 117/234 Operation, Use the 266 Series

* All Secondaries Center Tapped, VAC RMS

* Open Style, Channel Bracket, Two Hole Chassis Mount

* Minimum 6" Long Leads

* Dual Bobbin Design — No Electrostatic Shield Required

* Class B Insulation 130 degrees, C for Extra Protection — UL listed as a Class A 105 degree, C Design

* Hi-Pot Test of 2,000V RMS

* UL Listed

* CSA Certified
