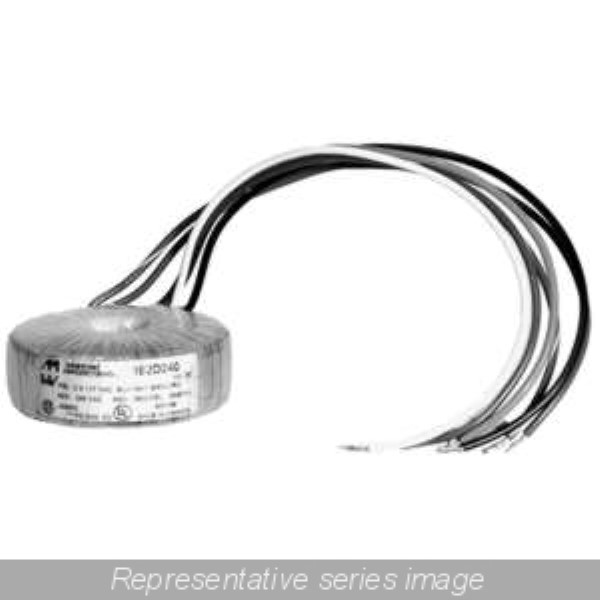

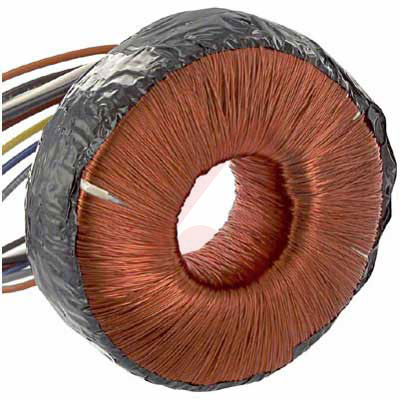

Power Transformer 117/234VAC Primary 15/30VAC Secondary 15000/7500mA Output 225VA 50/60Hz
**Features:**
* Low Profile
* Space Saving and Light Weight Due to High Efficiency Toroidal Design
* Low EMF Radiation
* Dual Primary 117/234 V
* 50/60 Hz Operation
* 4000 VRMS Hi-Pot Test
* Dual Secondaries for Series or Parallel Connection
* Recognized to UL506
* CSA Certified to C22.2 #66
* CE Certified to IEC 950
* Meets NAFTA Requirements
得捷:
PWR XFMR TORO 225VA CHAS MT
艾睿:
Power Transformer 4000Vrms 225VA 8Term. Wire Lead Center Single Hole
Allied Electronics:
Transformer, Toroidal Power; 225VA; Chassis; Pri:117/234VAC; Sec:Ser 30VCT, Par 15V
Newark:
# HAMMOND 182H15 Toroidal Transformer, Low Profile, 225 VA, 2 x 15V, 15 A, Panel
MASTER:
transformer - toroidal power
Online Components:
transformer - toroidal power
