1-640426-3

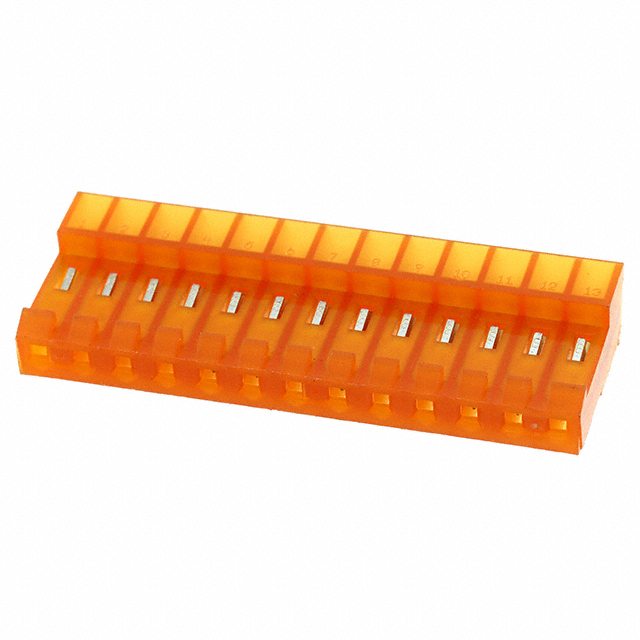

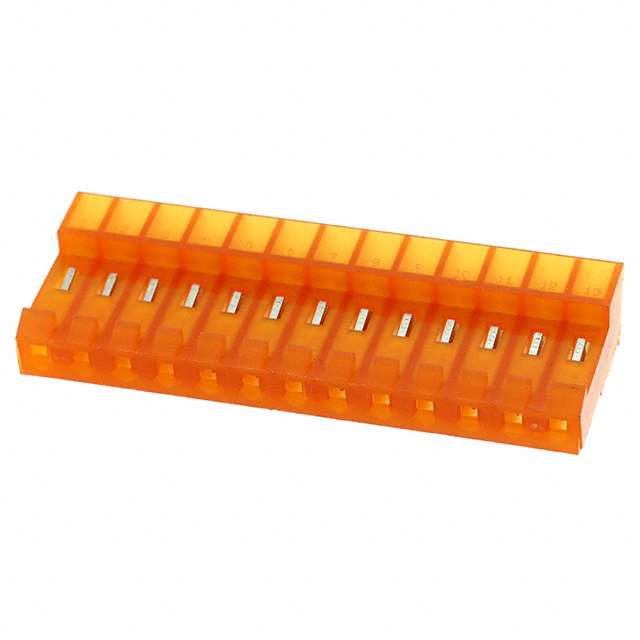

Conn IDC Connector F 13POS 3.96mm IDT RA Cable Mount Box

13P MTA156 CONN ASSY 18AWG ORA

Product Highlights

MTA-156 Connectors

Number of Positions = 13

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 13POS IDC 18AWG TIN

艾睿:
TE Connectivity&s;s idc connector 1-640426-3 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This F connector&s;s 13 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. This connector has an operating temperature of -55 to 105 °C. 1-640426-3 is housed in orange nylon. It uses the idt termination method. This product is 51.51 mm long, 9.02 mm tall and 18.42 mm deep.

Verical:
Conn IDC Connector F 13Power POS 3.96mm IDT RA Cable Mount Box/Carton

Newark:
# AMP - TE CONNECTIVITY  1-640426-3  Wire-To-Board Connector, Receptacle, MTA-156 Series

MASTER:
13P MTA156 CONN ASSY 18AWG ORA

Online Components:
13P MTA156 CONN ASSY 18AWG ORA

Electro Sonic:
13P MTA156 CONN ASSY 18AWG ORA
