1-640440-1

集管和线壳 11P MTA100 CONN ASSY WHITE W/RED STRIPE

11P MTA100 CONN ASSY 22AWG RED

Product Highlights

MTA-100 Connectors

Number of Positions = 11

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application, Wire-to-Wire Application

得捷:
CONN RCPT 11P IDC 22AWG TIN-LEAD

贸泽:
集管和线壳 11P MTA100 CONN ASSY WHITE W/RED STRIPE

艾睿:

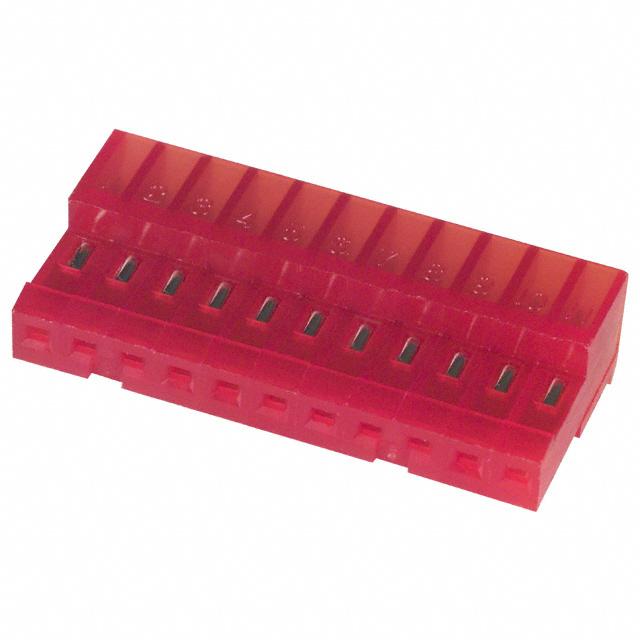

Thanks to TE Connectivity&s;s idc connector 1-640440-1 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This F connector&s;s 11 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. It has a female type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. 1-640440-1 is housed in red nylon. It uses the idt termination method. This product is 27.94 mm long, 6.99 mm tall and 13.21 mm deep.

安富利:
Conn IDC Connector F 11 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 11 POS 2.54mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  1-640440-1  11P MTA100 CONN ASSY 22AWG RED

MASTER:
11P MTA100 CONN ASSY 22AWG RED

Online Components:
11P MTA100 CONN ASSY 22AWG RED

ICbanQ:
Headers & Wire Housings 11P MTA100 CONN ASSY

Electro Sonic:
11P MTA100 CONN ASSY 22AWG RED
