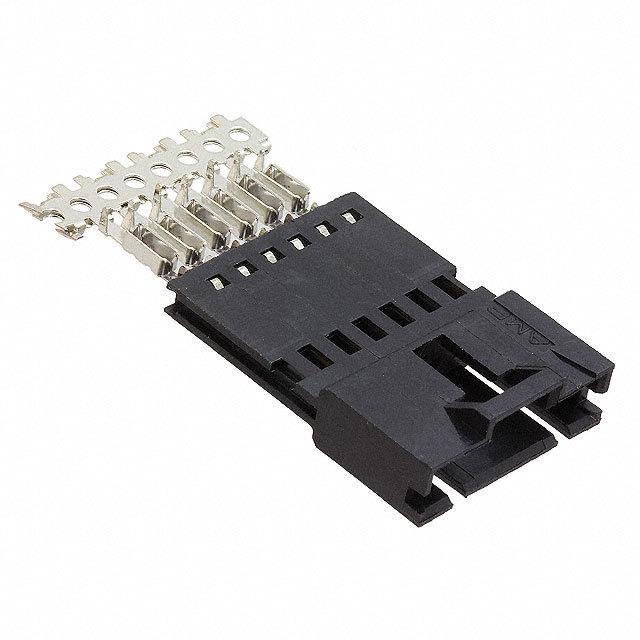

Conn IDC Connector PIN 6POS 2.54mm IDT ST Cable Mount Tube
2X6 MTE SHRD PIN SR LATCH .100
Product Highlights
Housing
Preloaded
Number of Positions = 6
Housing Type = Pin
Contact Type = Pin
得捷:
CONN PLUG 6POS IDC 26-30AWG GOLD
贸泽:
Headers & Wire Housings IDC LTCHD PIN ASSY 6
安富利:
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip
Chip1Stop:
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Tube
Verical:
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Tube
MASTER:
SHROUDED PIN ASSY, AMPMODU MTE, SINGLE ROW, .100 CL, POLARIZED, W/ LATCH WINDOWS, FOR #26-#30 AWG WIRE SIZE, STRIP FORM
Powell:
.100 AMPMODU Headers, Housings & Contacts
Online Components:
2X6 MTE SHRD PIN SR LATCH .100
Electro Sonic:
2X6 MTE SHRD PIN SR LATCH .100
触点数 6
线规 26AWG ~ 30AWG
触点电镀 Tin Lead
额定电流 3 A
绝缘电阻 5.00 GΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 6
安装角度 180 °
触点额定电流 3.00 A
额定电流Max 3A/触头
接触电阻Max 15 mΩ
引脚间距 2.54 mm
长度 17.7 mm
高度 6.6 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
