103944-3

Conn IDC Connector RCP 4POS 2.54mm IDT ST Cable Mount Strip

4 位置矩形连 插头 连接器 IDC 锡 - 铅 22-26 AWG

得捷:
CONN PLUG 4POS IDC 22-26AWG

艾睿:

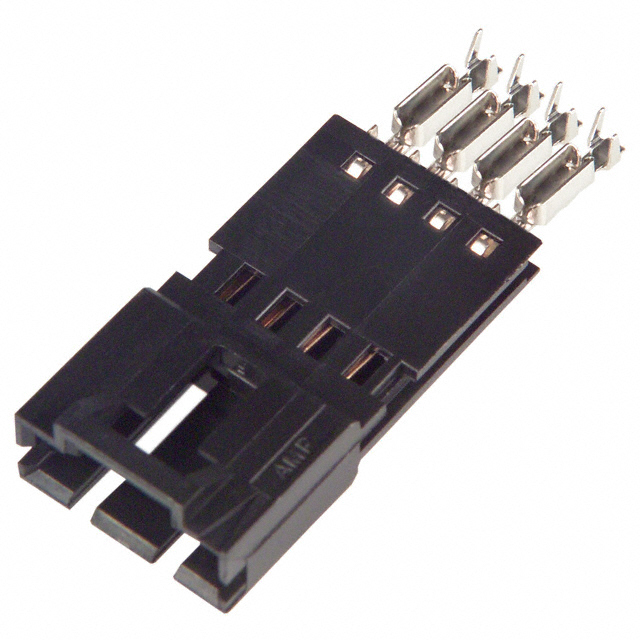

Safety is an important concern when designing electronic devices. TE Connectivity&s;s idc connector 103944-3 header connector helps protect your equipment from accidental shortages. This RCP connector&s;s 4 contacts that are made out of phosphor bronze and plated with bright tin-lead over nickel. It has a straight body orientation. It has a receptacle type gender. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 103944-3 is housed in black thermoplastic. It uses the idt termination method. This connector has an operating temperature of -65 to 105 °C. This product is 12.5 mm long, 6.6 mm tall and 24.13 mm deep.

Verical:
Conn Wire to Board M 4 POS 2.54mm IDT ST Cable Mount Tube

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
4X4 MTE SHRD PIN SR POL .100CL
