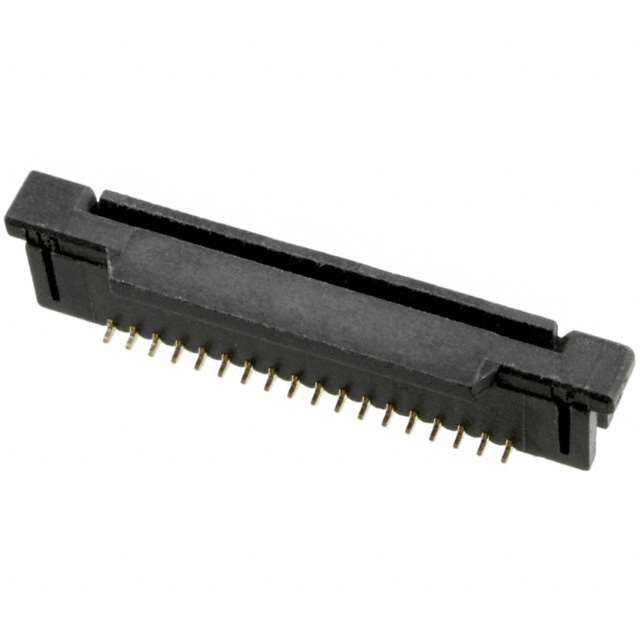

Conn FPC Connector SKT 18POS 1mm Solder ST SMD T/R
1.0 FPC, ZIF V/T, SMT, 18P
得捷:
CONN FPC VERT 18POS 1MM SMD
艾睿:
Thanks to TE Connectivity&s;s fpc connector 1-1734248-8 flexible flat cable, you can keep the size of your project and the number of disorganized electrical lines down to a minimum. This socket type connector&s;s 18 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 1-row connector. It has a straight body orientation. Its pitch is 1 mm. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It uses the solder termination method. This product is 24.8 mm long, 7.7 mm tall and 4.6 mm deep. 1-1734248-8 is housed in black thermoplastic.
安富利:
Conn FPC Connector SKT 18 POS 1mm Solder ST SMD T/R
Chip1Stop:
Conn FPC Connector SKT 18 POS 1mm Solder ST SMD T/R
Verical:
Conn FPC Connector SKT 18 POS 1mm Solder ST SMD T/R
Newark:
# TE CONNECTIVITY 1-1734248-8 FFC / FPC Board Connector, 1 mm, 18 Contacts, Receptacle, Surface Mount
MASTER:
1.0mm FPC ZIP Vertical, SMT
Powell:
FPC Connectors
Online Components:
1.0 FPC, ZIF V/T, SMT, 18P
Electro Sonic:
1.0 FPC, ZIF V/T, SMT, 18P
触点数 18
极性 Female
触点电镀 Gold
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 18
屏蔽 No
额定电流Max 1A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 125 VDC
额定电压 125 V
安装方式 Surface Mount
长度 24.8 mm
宽度 4.6 mm
高度 7.7 mm
外壳颜色 Black
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
