1986717-6

TE CONNECTIVITY  1986717-6  针座, 直型, 6路, 1排

6 针位端子块 接头，公引脚，无罩 0.138"（3.50mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 6POS VERT 3.5MM

贸泽:
可插拔接线端子 UNSHRDED STD HDR 3.5MM 6POS

e络盟:
针座, 直型, 6路, 1排

艾睿:

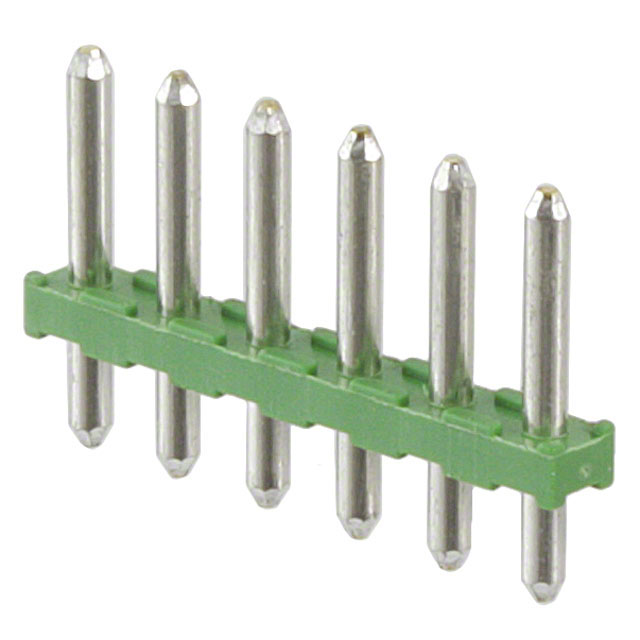

Use this unshrouded 1986717-6 header connector from TE Connectivity where IDC ribbon cables are used. This HDR connector&s;s 6 contacts that are made out of copper alloy and plated with tin. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 150 V. Its pitch is 3.5 mm. This is a 1-row connector. This device has a maximum current rating of 2 A. It uses the solder termination method. This product is 22.58 mm long, 9 mm tall and 2.8 mm deep. This connector has an operating temperature of -40 to 110 °C. 1986717-6 is housed in green polyamide.

安富利:
Conn Unshrouded Header HDR 6 POS 3.5mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 6 POS 3.5mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 6 POS 3.5mm Solder ST Thru-Hole

Newark:
# TE CONNECTIVITY  1986717-6  Board-To-Board Connector, 3.5 mm, 6 Contacts, Header, Through Hole, 1 Rows

MASTER:
MALE CONNECTOR, UNSHROUDED HEADER WITH STANDARD BASE-SOLDERABLE UP TO 275DEG C S

Online Components:
HEADER, 6P, 3.5mm 12.5 H

Electro Sonic:
HEADER, 6P, 3.5mm 12.5 H
