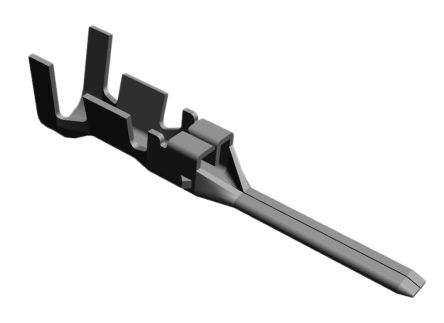

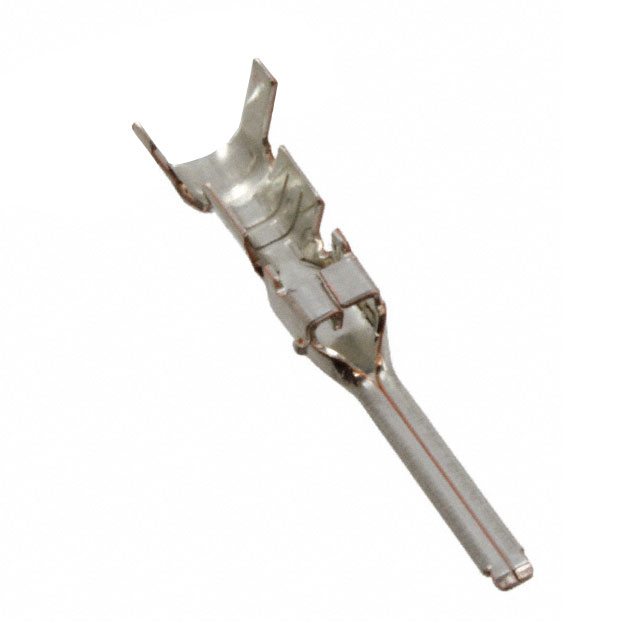

1565080-1

TE Connectivity Grace Inertia 触点插座和插片触点适合在 Grace Inertia 连接器 GIC 外壳中。 这些 Grace Inertia 连接器接受 22-18 AWG 的电线尺寸系列，采用预镀锡铜合金制成。### TE Connectivity Grace 惯性此连接器采用惯性锁定机制，可在配接的同时锁定，有助于防止错配。 其广泛用于大型家用电器，如冰箱、洗衣机或分配器。 由于工作环境，锁定声音会在连接器配接期间难以确定。 然而，即使在此类环境中，此连接器也可支持牢固配接操作。

Grace Inertia 触点

插座和插片触点适合在 Grace Inertia GIC 外壳中。 这些 Grace Inertia 连接器接受 22-18 AWG 的电线尺寸系列，采用预镀锡铜合金制成。

得捷:
CONN TAB 18-22AWG CRIMP TIN

立创商城:
1565080-1

欧时:
TE Connectivity Grace Inertia 3.5 系列 公 压接端子触点 1565080-1, 镀锡 铜合金触芯, 22AWG 至 18AWG

e络盟:
触芯, Grace Inertia Series, 公, 压接, 18 AWG, 镀锡触芯, AMP 3.5mm Grace Inertia系列连接器

艾睿:
This 1565080-1 connector contact from TE Connectivity comes with a variety of features based on the application. It has a straight body orientation. This device has a maximum current rating of 7 A. This has a Connector Headers and PCB Receptacles connector. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 17 mm long, 4.1 mm tall and 3.6 mm deep. Its wire is 18-22 AWG. This connector contact has an operating temperature range of -30 °C to 105 °C. It uses the crimp termination method.

安富利:
Contact PIN Crimp ST Cable Mount Strip

Verical:
Contact PIN Crimp ST Cable Mount 18-22AWG T/R

Powell:
AMP Universal Power System
