CONN PIN 26-22AWG TIN
MTE PIN 22-26 AWG PLTD
Product Highlights
Pin
Contact Type = MTE IDC
Wire Range = 0.12-0.40² [26-22] mm [AWG]
Wire Insulation Diameter = .91 - 1.37 mm
Standard Applied Pressure
得捷:
CONN PIN 22-26AWG CRIMP TIN
艾睿:

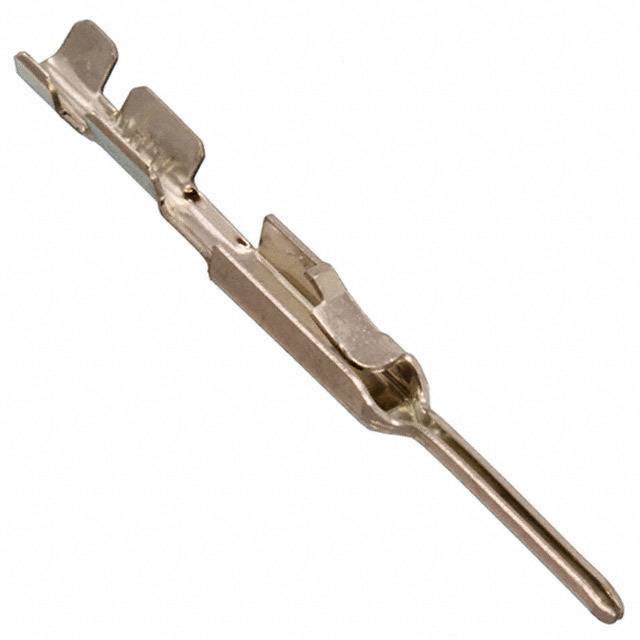

Prevent premature failure by installing this 104505-8 connector contact from TE Connectivity. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. This connector contact has a minimum operating temperature of -65 °C and a maximum of 105 °C. It uses the crimp termination method. This product is 20.62 mm long and 1.9 mm. Its wire is 22-26 AWG.
安富利:
Contact PIN Crimp ST Cable Mount Strip
MASTER:
PIN CONTACT, AMPMODU, MTE
Online Components:
MTE PIN 22-26 AWG PLTD
AMEYA360:
CONN PIN 26-22 AWG TIN
Electro Sonic:
MTE PIN 22-26 AWG PLTD
