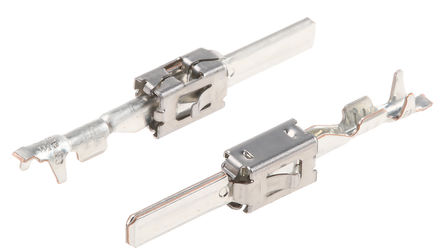

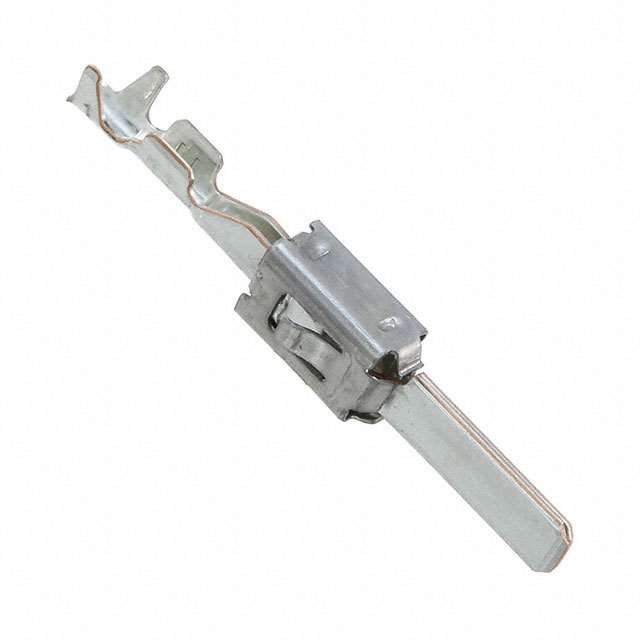

TE Connectivity MCP 2.8 标准插片计时器触点MCP 2.8 标准插片计时器触点,带不锈钢对称悬臂弹簧,且接合接口区域为 2.79 x 0.81mm。 这些 MCP 2.8 标准插片计时器触点与 MCP 2.8 触点系统配用,但还可与 Junior 功率计时器连接器系统一起使用。 有关合适的空心插头,请参见库存号 680-6905。### TE Connectivity Multiple Contact Point 系统 MCP
MCP 2.8 标准插片计时器触点
MCP 2.8 标准插片计时器触点,带不锈钢对称悬臂弹簧,且接合接口区域为 2.79 x 0.81mm。 这些 MCP 2.8 标准插片计时器触点与 MCP 2.8 触点系统配用,但还可与 Junior 功率计时器系统一起使用。 有关合适的空心插头,请参见库存号 680-6905。
### TE Connectivity Multiple Contact Point 系统 MCP
立创商城:
19638601
得捷:
CONN TAB 20-24AWG CRIMP TIN
欧时:
TE Connectivity MCP 2.8 标准插片计时器触点MCP 2.8 标准插片计时器触点,带不锈钢对称悬臂弹簧,且接合接口区域为 2.79 x 0.81mm。 这些 MCP 2.8 标准插片计时器触点与 MCP 2.8 触点系统配用,但还可与 Junior 功率计时器连接器系统一起使用。 有关合适的空心插头,请参见库存号 680-6905。### TE Connectivity Multiple Contact Point 系统 MCP
艾睿:
A solid mechanical connection is ideal for any cable connection, this 1-963860-1 connector contact manufactured from TE Connectivity will get the job don. It has a straight body orientation. This has a Connector Headers and PCB Receptacles connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. Its wire is 20-24 AWG. It uses the crimp termination method. This product is 25.5 mm long, 2.9 mm tall and 2.9 mm deep.
Allied Electronics:
Timer PCB Connector Contact; Male; Crimp; Tin Plating 20 - 24 AWG
安富利:
Contact PIN Crimp ST Cable Mount Strip
Verical:
Contact PIN Crimp ST Cable Mount 20-24AWG T/R Automotive
Newark:
Rectangular Power Contact, Tin Plated Contacts, Copper, Pin, Crimp, 24 AWG
MASTER:
PRODUCT GROUP DRAWING FOR TAB 2.8x0.8 Produktgruppenzeichnung fuer
Powell:
Timer Contacts
Online Components:
FLACHSTECKER2,8X0,8
Electro Sonic:
TAB 2.8x0.8 CONTACT CS SRC Sn
极性 Male
线规 20AWG ~ 24AWG
触点电镀 Tin
接触电阻 2 mΩ
额定电流Max 12 A
工作温度Max 130 ℃
工作温度Min -40 ℃
接触电阻Max 2 mΩ
封装 -
高度 2.9 mm
封装 -
触点材质 Bronze
工作温度 -40℃ ~ 130℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536904000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
1-963860-1 TE Connectivity 泰科 | 当前型号 | 当前型号 |
