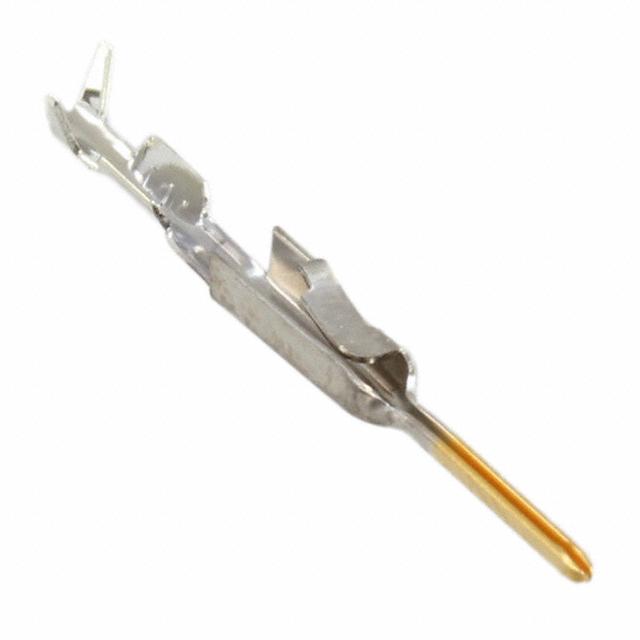

104506-8

CONN PIN 32-28AWG GOLD

MTE PIN 28-32 AWG PLTD

Product Highlights

Pin

Contact Type = MTE IDC

Wire Range = 0.03-0.09² [32-28] mm [AWG]

Wire Insulation Diameter = .64 - 1.37 mm

Standard Applied Pressure

得捷:
CONN PIN 28-32AWG CRIMP GOLD

贸泽:
Headers & Wire Housings PIN 32-28 AWG GOLD

艾睿:
This 104506-8 connector contact from TE Connectivity is designed to perform within the rated voltage and current specifications to provide a solid connection. It has a straight body orientation. This device has a maximum current rating of 3 A. This has a Connector Headers and PCB Receptacles connector. This product comes in strip packaging to create faster automation between picking parts and placing them on circuit boards. It uses the crimp termination method. Its wire is 28-32 AWG. This connector contact has an operating temperature range of -65 °C to 105 °C. This product is 20.75 mm long and 2.15 mm.

Chip1Stop:
Contact PIN Crimp ST Cable Mount Strip

Verical:
Contact PIN Crimp ST Cable Mount 28-32AWG Strip

MASTER:
Contact PIN Crimp ST Cable Mount 28-32AWG Strip

Online Components:
MTE PIN 28-32 AWG PLTD
