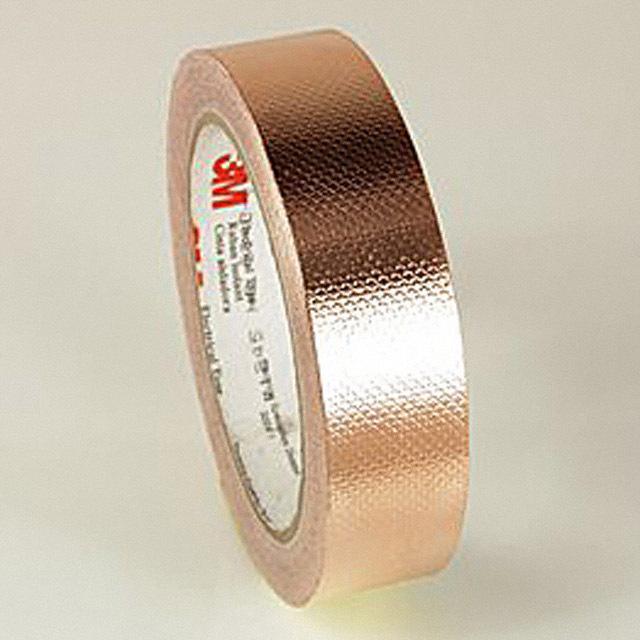

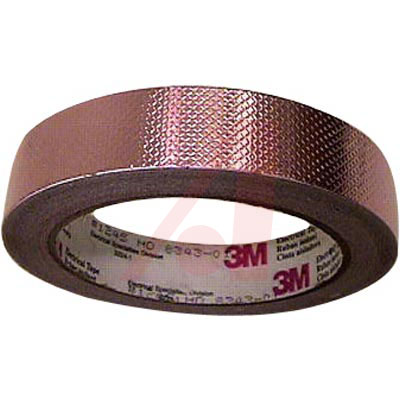

1245-1/2"X18YD# 3MTM EMI Embossed Copper Shielding Tape 1245_ 1/2in x 18 yd 12.7mm x 16.5m_ 18 per case
™ 1245 Tape consists of an embossed 1-ounce deadsoft copper foil backing and an aggressive pressure-sensitive acrylic adhesive. The edges of the embossed pattern pressed into the foil cut through the adhesive layer to establish reliable metal-to-metal contact between the backing and the application substrate.
* Embossed Deadsoft 1-Ounce Copper Foil Backing
* Conductivity “Through the Adhesive”
* Supplied on a Removable Liner for Easy Handling and Die-Cutting Like all 3M™ shielding tapes, 3M™ 1245 is available in standard and custom widths and lengths. Standard length is 18 yards.
* Widths from 1⁄4" to 23"
* Longer Lengths Up to Several Times Normal Length, Dependent Upon Width 3M™ 1245 Tape is typically used for applications requiring excellent electrical conductivity from the application substrate through the adhesive to the foil backing. Common uses include grounding and EMI shielding in equipment, components, shielded rooms, etc. The copper foil backing is solderable and resists oxidation and discoloration.
