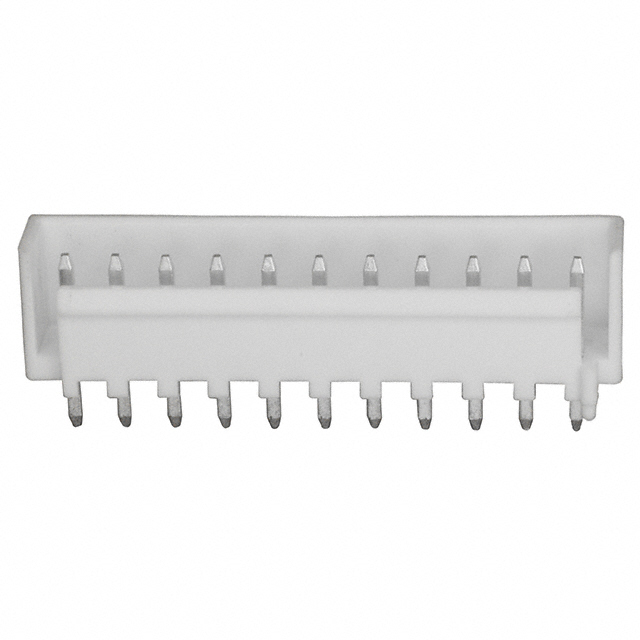

1-1877285-1

Conn Shrouded Header HDR 11POS 3.96mm Solder ST Thru-Hole

11P EP SHRD HDR ASMY, WHITE

得捷:
CONN HEADER VERT 11POS 3.96MM

艾睿:
Reduce safety concerns with this shrouded 1-1877285-1 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 11 contacts that are made out of brass and plated with tin over nickel. It has a straight body orientation. Its pitch is 3.96 mm. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. It has a header type gender. This device has a maximum current rating of 7.5 A/contact. This connector has an operating temperature of -25 to 105 °C. It uses the solder termination method. 1-1877285-1 is housed in natural polybutylene terephthalate. This product is 46.81 mm long, 12 mm tall and 9.58 mm deep.

安富利:
Conn Shrouded Header HDR 11 POS 3.96mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 11 POS 3.96mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 11 POS 3.96mm Solder ST Thru-Hole Bag

MASTER:
SHROUDED HEADER ASSEMBLY, 2 THRU 12 POSITION, SINGLE LATCH,

Online Components:
11P EP SHRD HDR ASMY, WHITE

Electro Sonic:
11P EP SHRD HDR ASMY, WHITE
