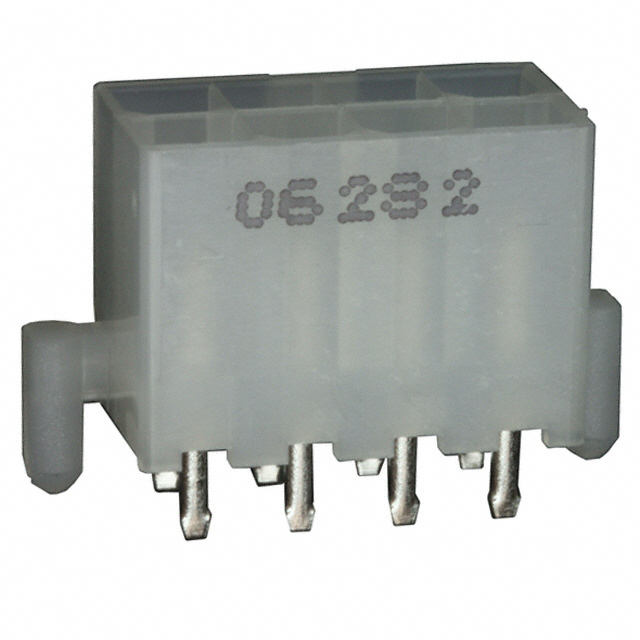

1-794305-1

Conn Power HDR 8POS 4.2mm Solder ST Thru-Hole 8 Terminal 1Port

08P DUAC PWR CONN ASSY VRT LF

Product Highlights

Header

AMP-DUAC

Number of Positions = 8

PCB Mount Angle = Vertical

Yes PCB Retention Feature

得捷:
CONN HEADER VERT 8POS 4.2MM

艾睿:
Use the 1-794305-1 power connector from TE Connectivity to power up your circuit with the least amount of losses. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VAC. It has a header type gender. It has a straight body orientation. This connector has a single port. 1-794305-1 is housed in nylon. This device has a maximum current rating of 9 A/contact. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its 8 terminals use the solder termination method. This product is 12.8 mm tall.

安富利:
Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port

Chip1Stop:
Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port

Verical:
Conn Power HDR 8 POS 4.2mm Solder ST Thru-Hole 8 Terminal 1 Port Box

MASTER:
08P DUAC PWR CONN ASSY VRT LF

Online Components:
08P DUAC PWR CONN ASSY VRT LF

Electro Sonic:
08P DUAC PWR CONN ASSY VRT LF
