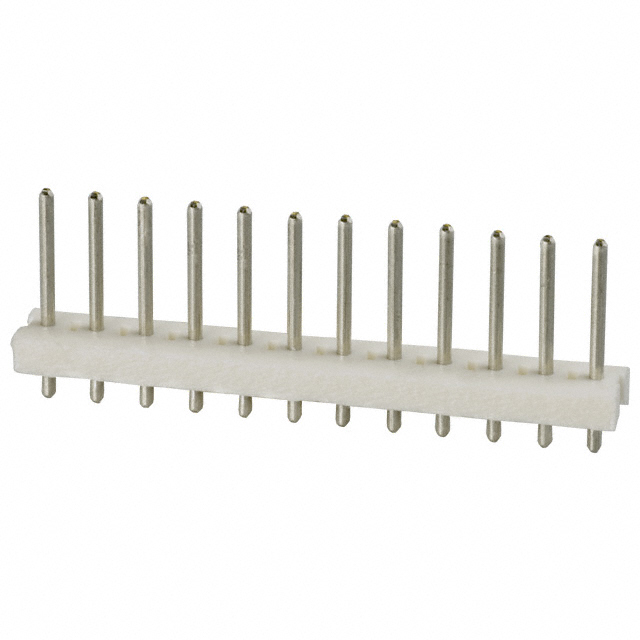

1-640384-2

Conn Unshrouded Header HDR 12POS 3.96mm Solder ST Thru-Hole

针座 通孔 12 位置 0.156"（3.96mm）

得捷:
CONN HEADER VERT 12POS 3.96MM

艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded 1-640384-2 header connector from TE Connectivity. This HDR connector&s;s 12 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. 1-640384-2 is housed in white polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 47.55 mm long, 13.34 mm tall and 6.35 mm deep.

安富利:
Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 12 POS 3.96mm Solder ST Thru-Hole

MASTER:
MTA-156 HEADER ASSEMBLY, PLAIN, STRAIGHT, .045 ROUND POST, TIN PLATED

Electro Sonic:
12P MTA156 HDR ASSY STR RND SN
