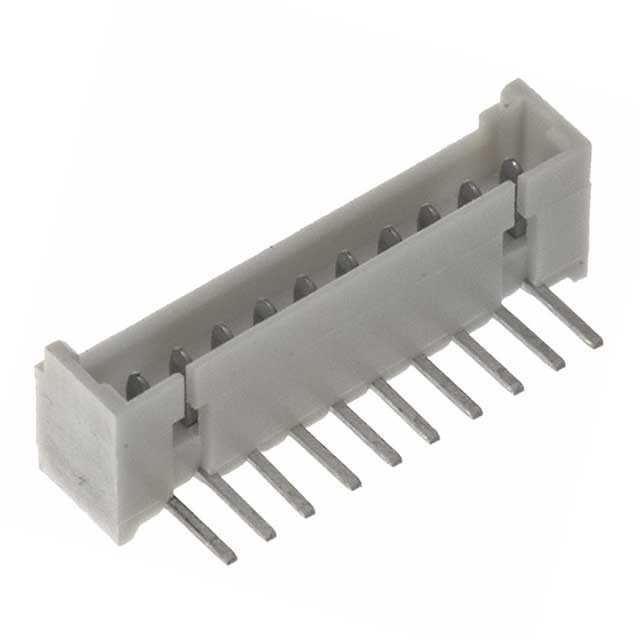

1-1734829-0

1.25 WTB HDR DIP, 10POS, through hole, right angle

针座连接器 通孔，直角 10 位置 0.049"（1.25mm）

得捷:
CONN HEADER R/A 10POS 1.25MM

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this wire to board 1-1734829-0 header connector from TE Connectivity on your PCB today! This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a right angle body orientation. This is a 1-row connector. Its pitch is 1.25 mm. It has a header type gender. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 14.25 mm long, 3.2 mm tall and 4.7 mm deep. 1-1734829-0 is housed in natural thermoplastic.

Verical:
Conn Shrouded Header 4 Sides HDR 10 POS 1.25mm Solder RA Thru-Hole Tube

MASTER:
Conn Shrouded Header 4 Sides HDR 10 POS 1.25mm Solder RA Thru-Hole Tube

Powell:
Headers & Wire Housings 10 POS HDR R/A 1.25mm

Online Components:
1.25 WTB HDR DIP, 10 POS

Electro Sonic:
1.25 WTB HDR DIP, 10 POS
