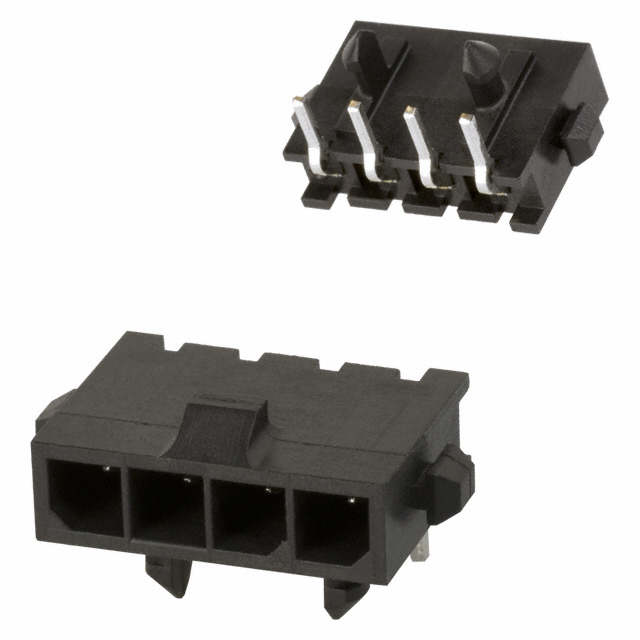

1445098-4

Conn Power HDR 4POS 3mm Solder RA Thru-Hole 4 Terminal 1Port Tray

Connector Header Through Hole, Right Angle 4 position 0.118" 3.00mm

得捷:
CONN HEADER R/A 4POS 3MM

贸泽:
Pin & Socket Connectors HDR ASSY 4 POS R/A SINGLE ROW 30 AU

艾睿:
There won&s;t be any energy loss when you power up your circuit using the 1445098-4 power connector from TE Connectivity. This HDR connector&s;s 4 contacts that are made out of brass and plated with gold over nickel. Its pitch is 3 mm. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This connector has a single port. This device has a maximum current rating of 5 A/contact. 1445098-4 is housed in nylon. This component comes in tray packaging, useful for fast picking and placing of your parts. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 16.14 mm long, 5.67 mm tall and 8.92 mm deep. Its 4 terminals use the solder termination method.

Powell:
3mm Centerline, 250V, 5 A max.

Electro Sonic:
MICRO MNL HDR ASSY SINGLE ROW
