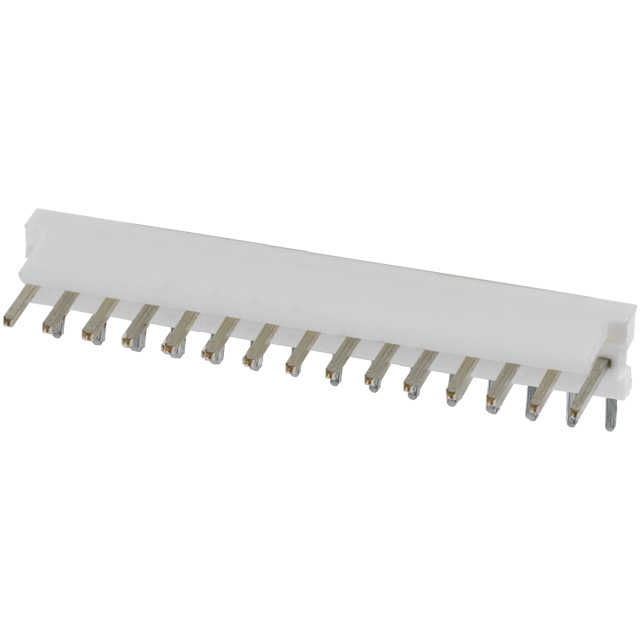

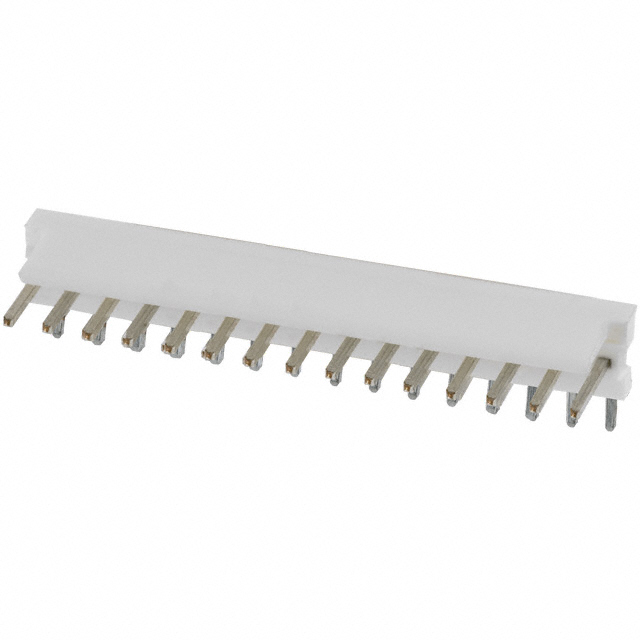

1-640455-5

Conn Wire to Board HDR 15POS 2.54mm Solder RA Thru-Hole

针座 通孔，直角 15 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 15POS 2.54MM

贸泽:
Headers & Wire Housings RA SQ POSTS HDR 15P

艾睿:
Protect your printed circuit boards from accidental damages with TE Connectivity&s;s wire to board 1-640455-5 header connector. This HDR connector&s;s 15 contacts that are made out of copper alloy and plated with tin. Its pitch is 2.54 mm. It has a right angle body orientation. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. 1-640455-5 is housed in white polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 38.1 mm long, 5.72 mm tall and 11.05 mm deep.

安富利:
Conn Wire to Board HDR 15 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Wire to Board HDR 15 POS 2.54mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  1-640455-5  15P MTA100 HDR ASSY SQ R/A POL New

MASTER:
MTA-.100 HDR ASSY, POLARIZED, NOTCHED, .025 SQUARE

Online Components:
15P MTA100 HDR ASSY SQ R/A POL

Electro Sonic:
15P MTA100 HDR ASSY SQ R/A POL
