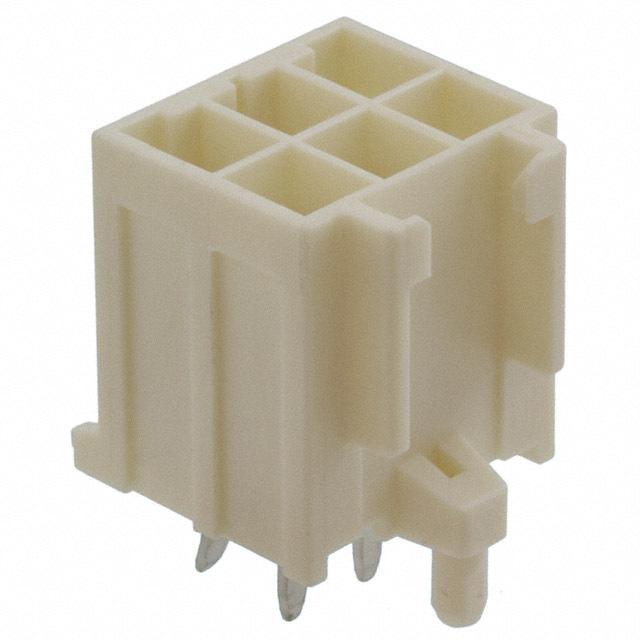

179841-1

AMP FROM TE CONNECTIVITY  179841-1  插接连接器, 针座, 6路, 3.96 MM

AMP POWER D/LOCK T/HDR ASSY 6P

Product Highlights

Connector

Preloaded

Connector Style = Header - Tab

Contact Gender = Tab

6 Positions

得捷:
CONN HEADER VERT 6POS 3.96MM

立创商城:
6 位 接头 连接器 0.156"3.96mm 通孔 锡

贸泽:
Headers & Wire Housings HDR 6P VERT .156 TIN

e络盟:
线至板连接器, 3.96 mm, 6 触点, 针座, Power Double Lock Series, 通孔安装, 2 排

艾睿:
Easily connect a power supply to a circuit with this 179841-1 power connector from TE Connectivity. This M connector&s;s 6 contacts that are made out of copper alloy and plated with tin. It has a straight body orientation. This connector has a single port. It has a maximum voltage rating of 300 VAC. It has a male type gender. Its pitch is 3.96 mm. 179841-1 is housed in nylon 6/6. This product is 13 mm long, 14.6 mm tall and 14.8 mm deep. Its 6 terminals use the solder termination method. This power connector has an operating temperature range of -30 °C to 105 °C.

Allied Electronics:
3.96mm Pitch 6 Way Straight PCB Header, Solder Termination

安富利:
Conn Power M 6 POS 3.96mm Solder ST Thru-Hole 6 Terminal 1 Port

Chip1Stop:
Conn Power M 6 POS 3.96mm Solder ST Thru-Hole 6 Terminal 1 Port Automotive Box

Verical:
Conn Power M 6 POS 3.96mm Solder ST Thru-Hole 6 Terminal 1 Port Box

Newark:
# AMP - TE CONNECTIVITY  179841-1  Rectangular Connector, Power Double Lock Series, 6 Contacts, Header, 3.96 mm, Through Hole, 2 Row

Powell:
Power Double-Lock Connectors

Online Components:
AMP POWER D/LOCK T/HDR ASSY 6P

Electro Sonic:
AMP POWER D/LOCK T/HDR ASSY 6P
