1-103735-3

Conn Shrouded Header HDR 14POS 2.54mm Solder ST Thru-Hole Tube

14 MTE HDR SRST LATCH .100CL

Product Highlights

Header

Wire Termination Type = Crimp, Insulation Displacement Crimp IDC

Number of Positions = 14

Number of Rows = Single

Post Size = 0.64 [.025] mm [in]

得捷:
CONN HEADER VERT 14POS 2.54MM

贸泽:
Headers & Wire Housings LTCH HDR WO SWAGE 14

艾睿:

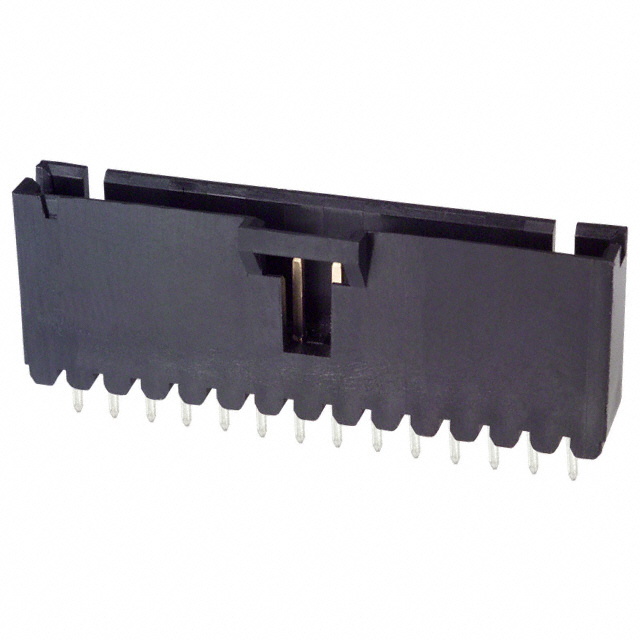

As an added safety precaution, the shrouded 1-103735-3 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 14 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -65 to 105 °C. This product is 38.1 mm long, 13.59 mm tall and 6.98 mm deep. It uses the solder termination method. 1-103735-3 is housed in black thermoplastic.

安富利:
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube

Chip1Stop:
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Shrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Box/Tube

MASTER:
HDR ASSY, VERT, SINGLE ROW 2.54[.100]C, 0.64[.025] SQ POST, WITH PLZN & LATCHING

Powell:
.100 AMPMODU Headers, Housings & Contacts

Online Components:
14 MTE HDR SRST LATCH .100CL

Electro Sonic:
14 MTE HDR SRST LATCH .100CL
